SAB Rapid Deployment Kit

Name: SAB Rapid Deployment Kit
Brand: MTGA

Comprehensive Platform For Mounting And Deploying Site Awareness Systems On Any Vehicle Or Structure

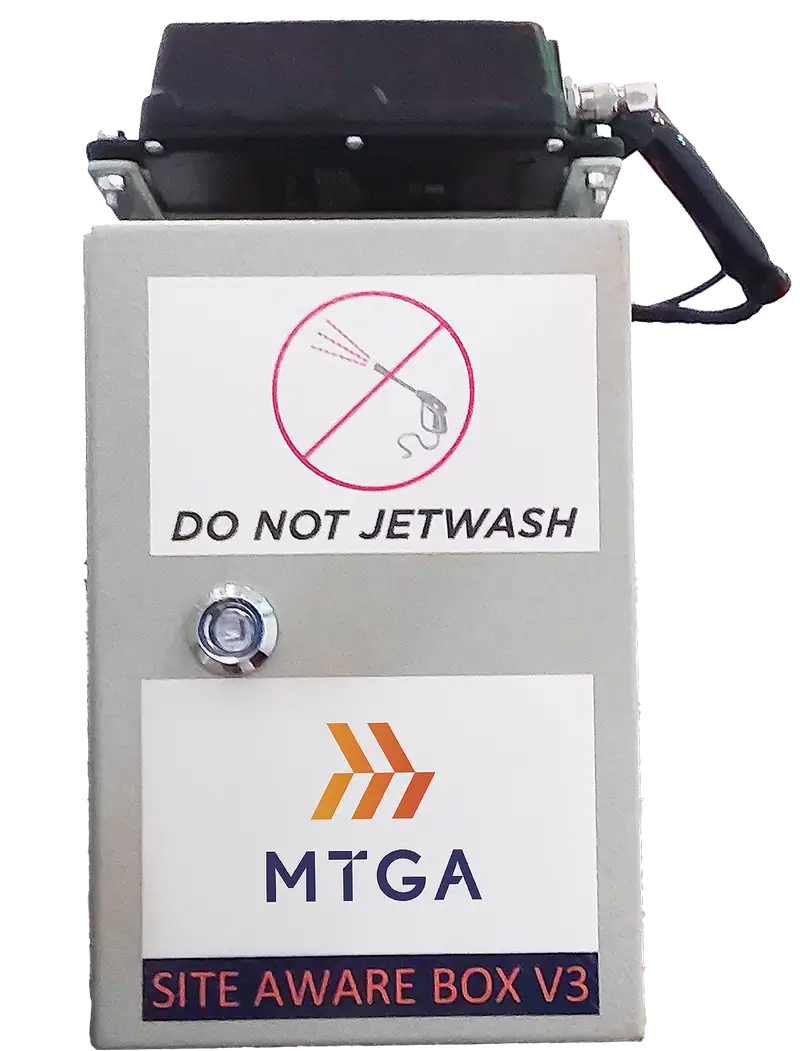

The SAB (Site Aware in a Box) is a rapid deployment kit built to house, protect and connect OEM site awareness systems on mine site vehicles and infrastructure. Rather than managing the complexity of adapting site awareness technology to different vehicles and mounting configurations in-house, the SAB handles it, MTGA engineers adapt your OEM systems to fit inside the IP66-rated enclosure, build custom mounting brackets for your specific vehicles or structures, and deliver the kit ready to install.

Every SAB is compatible with CAT Site Aware systems and connects with all leading site awareness platforms. At 15kg and 300 x 200 x 150mm, the enclosure is compact enough to mount anywhere, vehicles, buildings or fixed infrastructure with modular Stauff clamp bracketry, magnet and clamp kits for various configurations.

Request A Quote

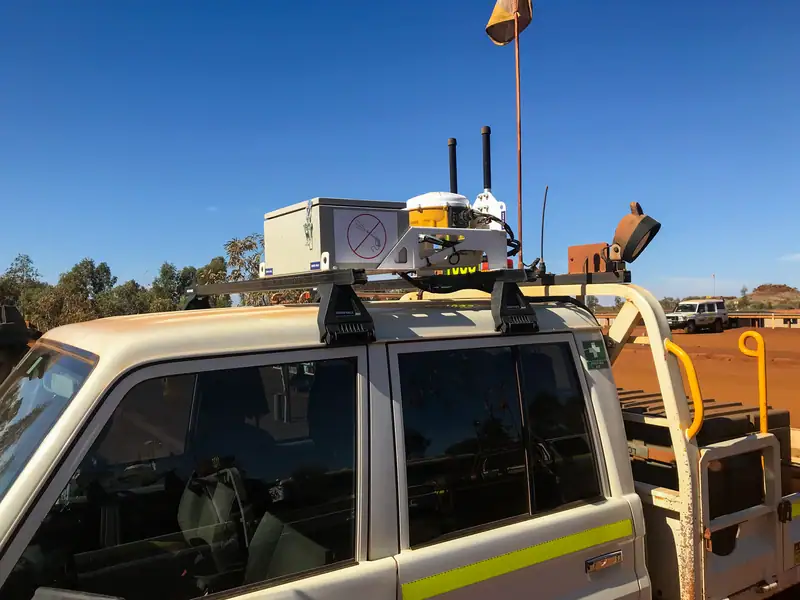

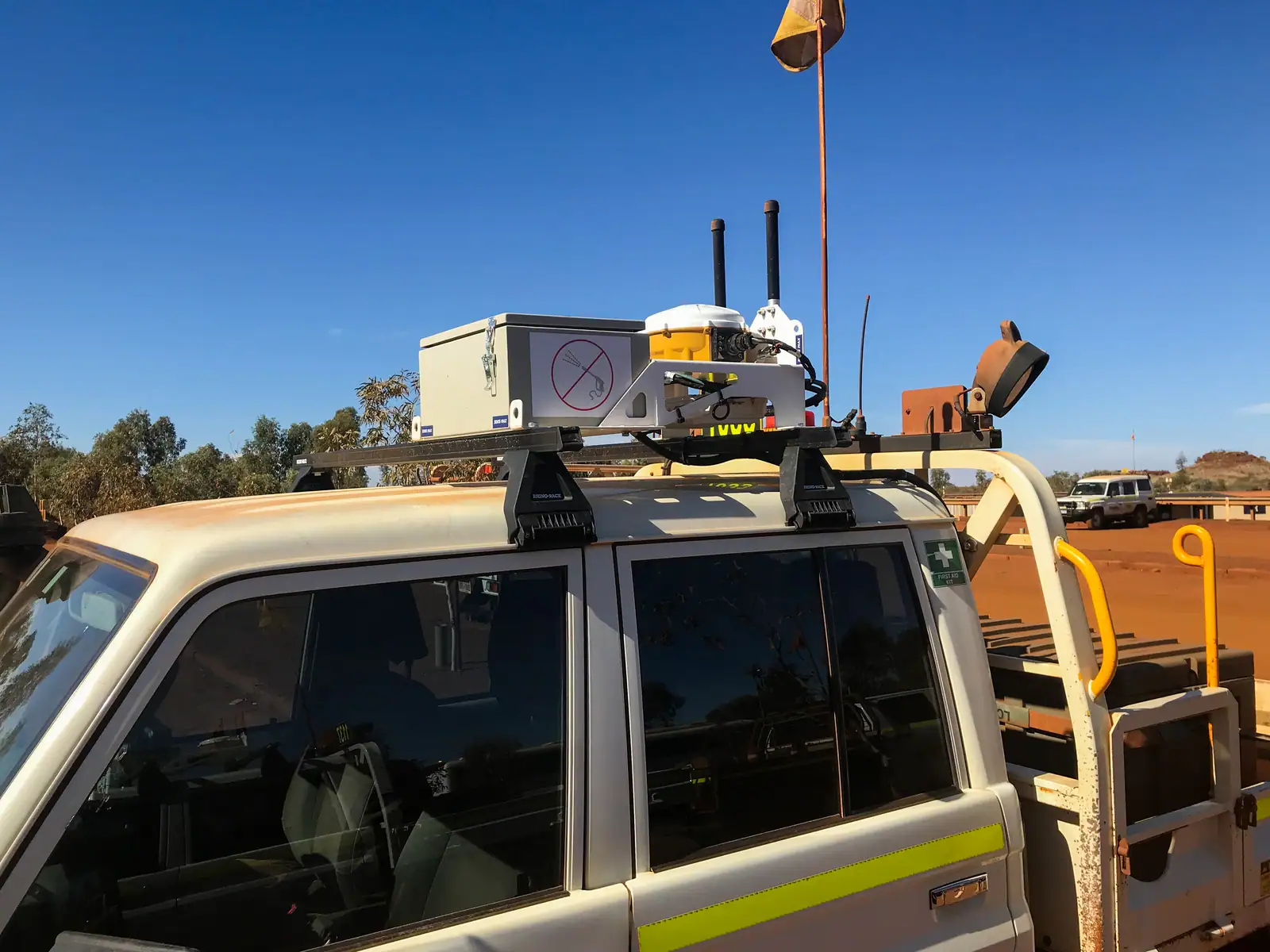

See It in Use

Specifications

IP Rating: 65
Weight: 15 kg (excluding cabling)
Dimensions: 300 x 200 x 150 (H x W x D mm)

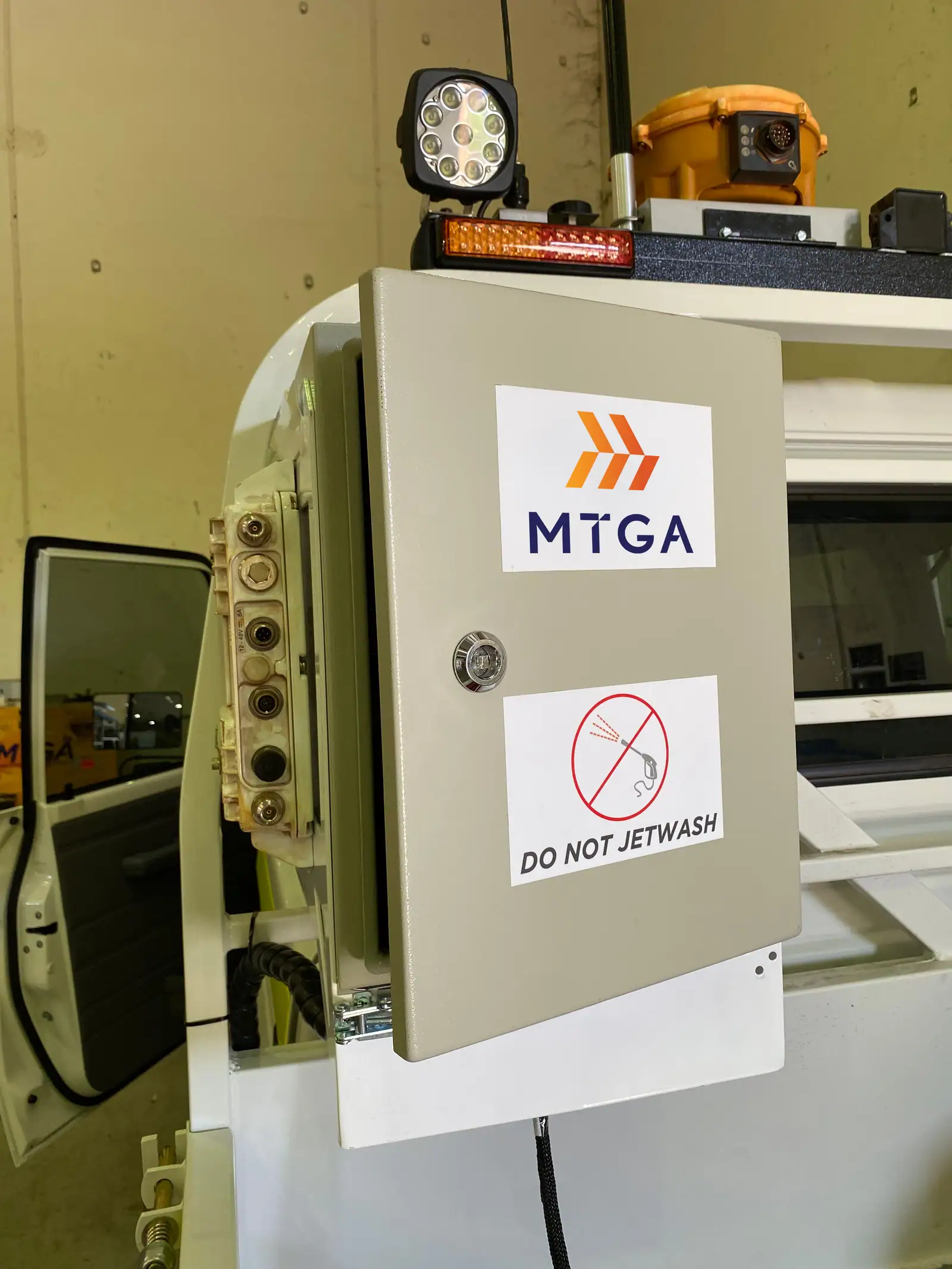

IO [Gland Plate]: Flange mounted: QTYx1 HDP 23 pin, 2x DT 4 pin
Peripheral Devices: Reconfigurable mounting bracket for MS955 Receiver & Cisco AP / AVI LET Radio
Mounting: Bracket with Stauff© Clamps [standard], reconfigurable mounting solutions optional extras
Mounting Bracket: Thick Plate – 1.8 kg

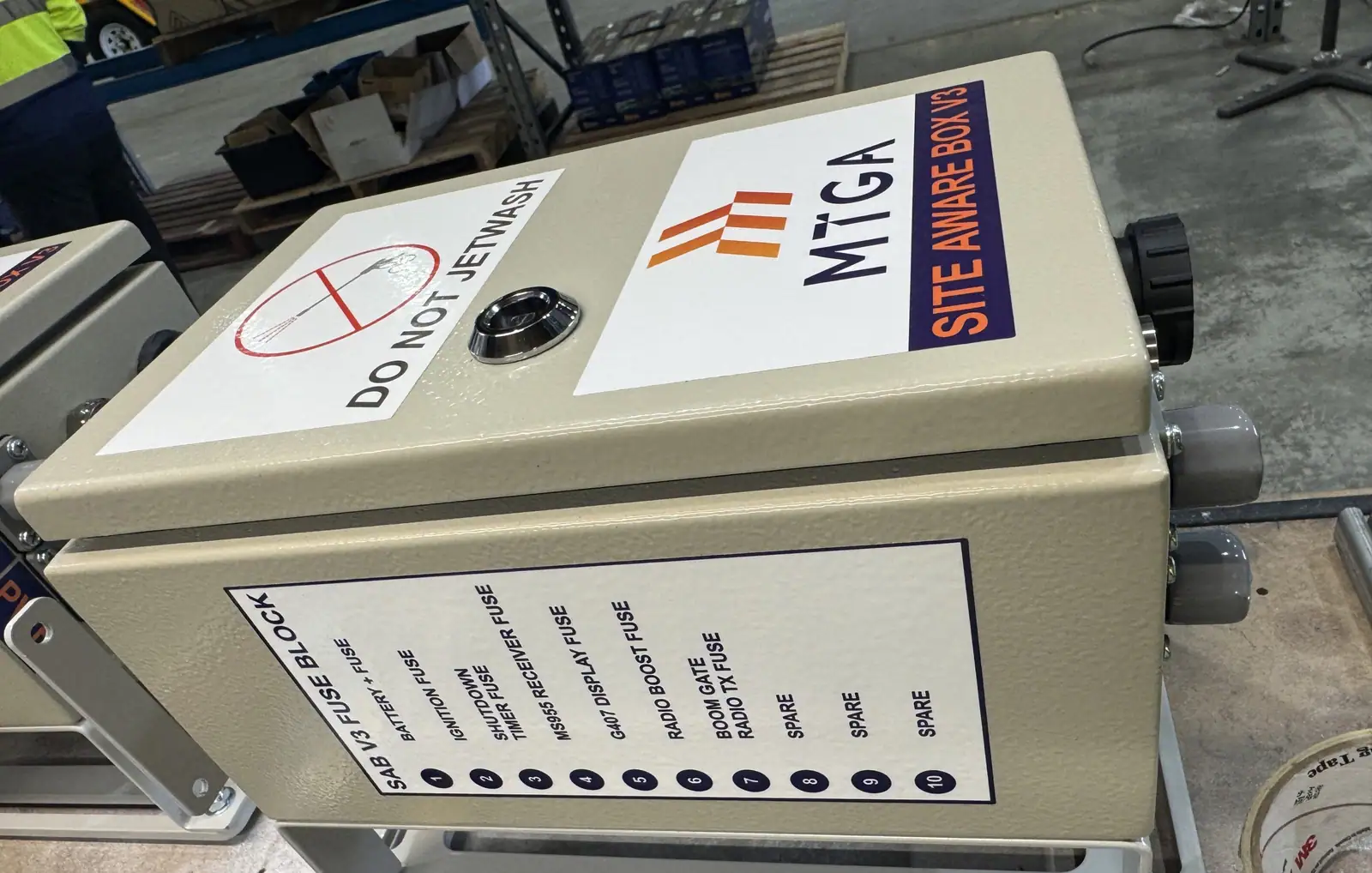

Moisture Protection: Moisture Indicator/Absorber + Gland Breather
Voltage System: 12VDC – [SAB V3 12VDC KIT], 24VDC – [SAB V3 24VDC KIT]

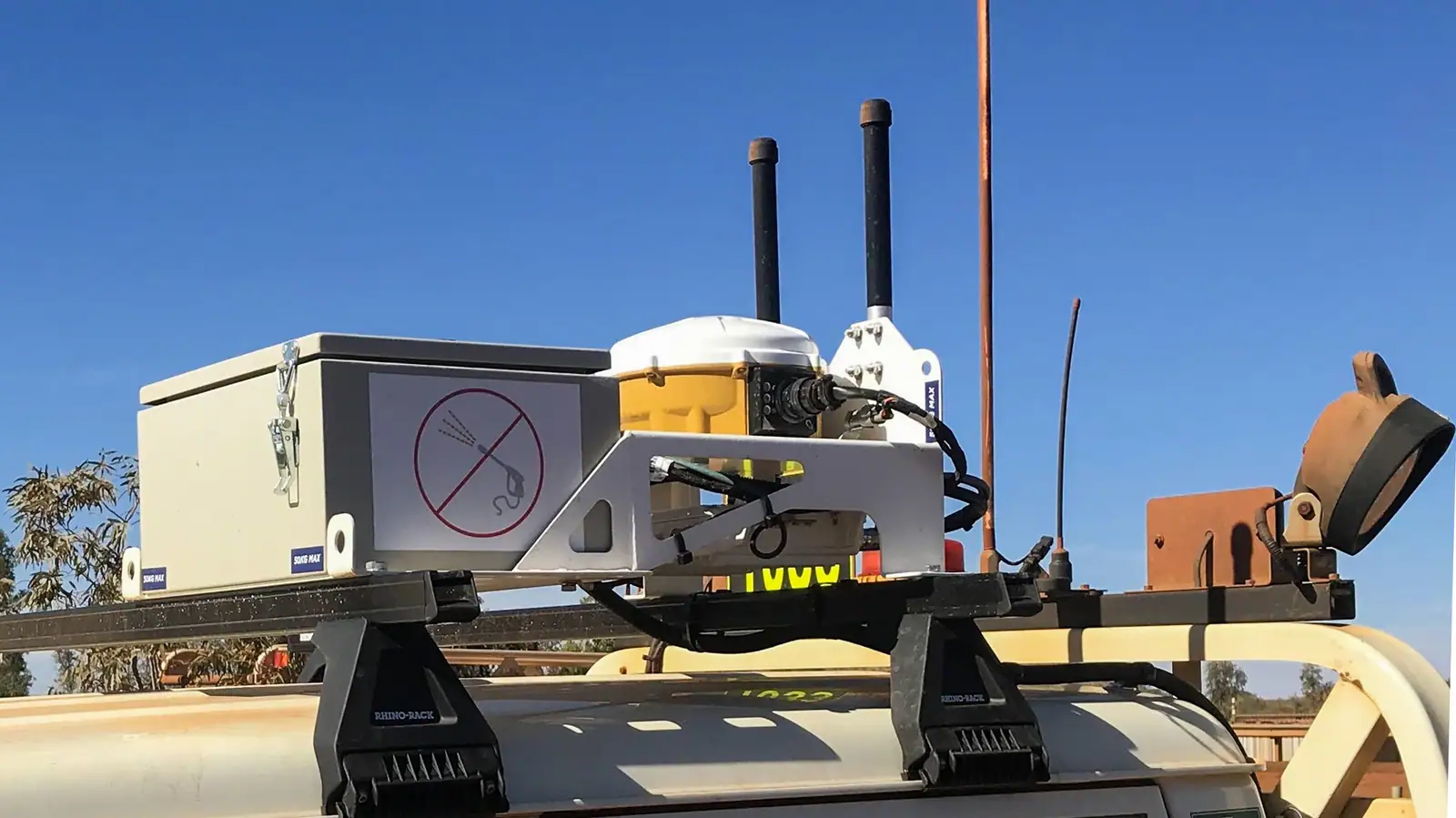

Antenna Station: Small profile mounting of QTYx2, Omnidirectional Antennas, QTYx1, Zephyr 3 © Rugged GPS Antenna
Mounting Kits: Modular bracketry Stauff Clamps, Magnet and Clamp kits for various mounting configurations

Why Choose This Product

Complete Site Awareness Installation Package
The SAB isn't just a housing, it's a full service. MTGA adapts your OEM systems to fit inside the enclosure, engineers custom mounting brackets for your vehicles and buildings, delivers the kit ready for use and provides ongoing installation and maintenance support. One engagement covers the whole integration.
Compatible with CAT Site Aware and All Leading Systems
The SAB is fully compatible with CAT Site Aware systems and integrates with all leading site awareness platforms. The IP66-rated enclosure protects the hardware while the modular bracketry adapts to any mounting configuration, vehicles, fixed infrastructure or buildings.

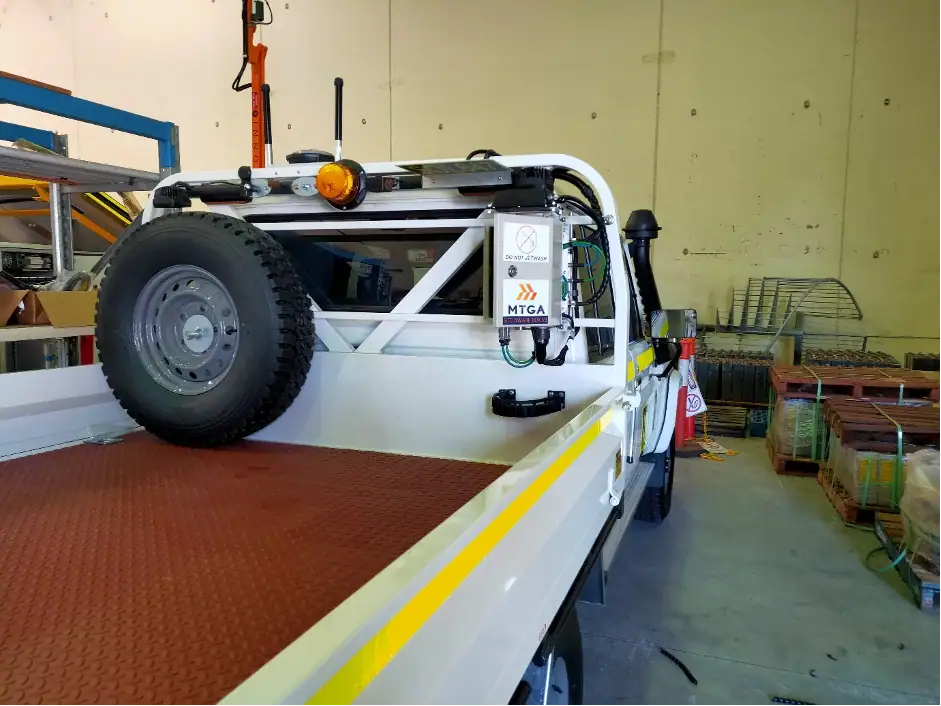

Custom Mounting for Any Vehicle
Every mine site runs different equipment. MTGA engineers custom mounting brackets for your specific vehicle fleet, whether that's light vehicles, heavy plant or fixed structures. Modular Stauff clamp, magnet and clamp kits cover a wide range of configurations out of the box.
Ships Globally
The SAB is built in Perth and available for global shipping. For international operations or multi-site deployments requiring consistent site awareness infrastructure, kits can be produced and shipped to meet your requirements.

Built for Sites Running Autonomous or Semi-Autonomous

Mining
Autonomous zone management, vehicle tracking and site awareness infrastructure on mine sites where OEM systems need to be reliably housed and quickly deployed across a fleet.
Civil Construction
Large civil infrastructure projects running site awareness technology across multiple vehicles and fixed monitoring points requiring consistent, maintainable installation.
Defence & Government
Vehicle-mounted site awareness and tracking systems requiring ruggedised, IP-rated housing and custom integration for specific fleet configurations.
