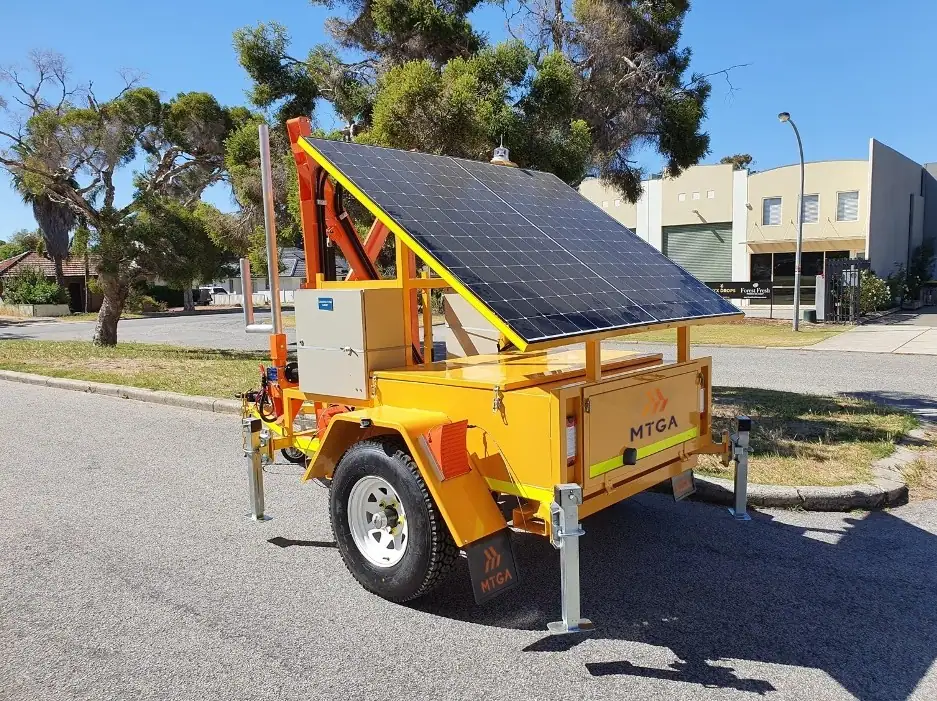

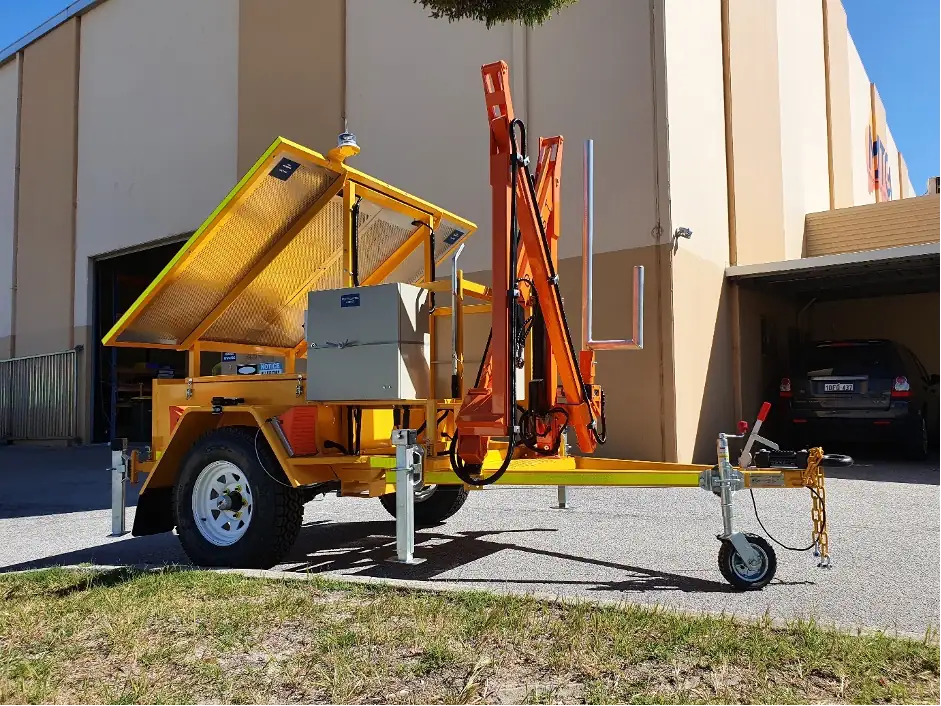

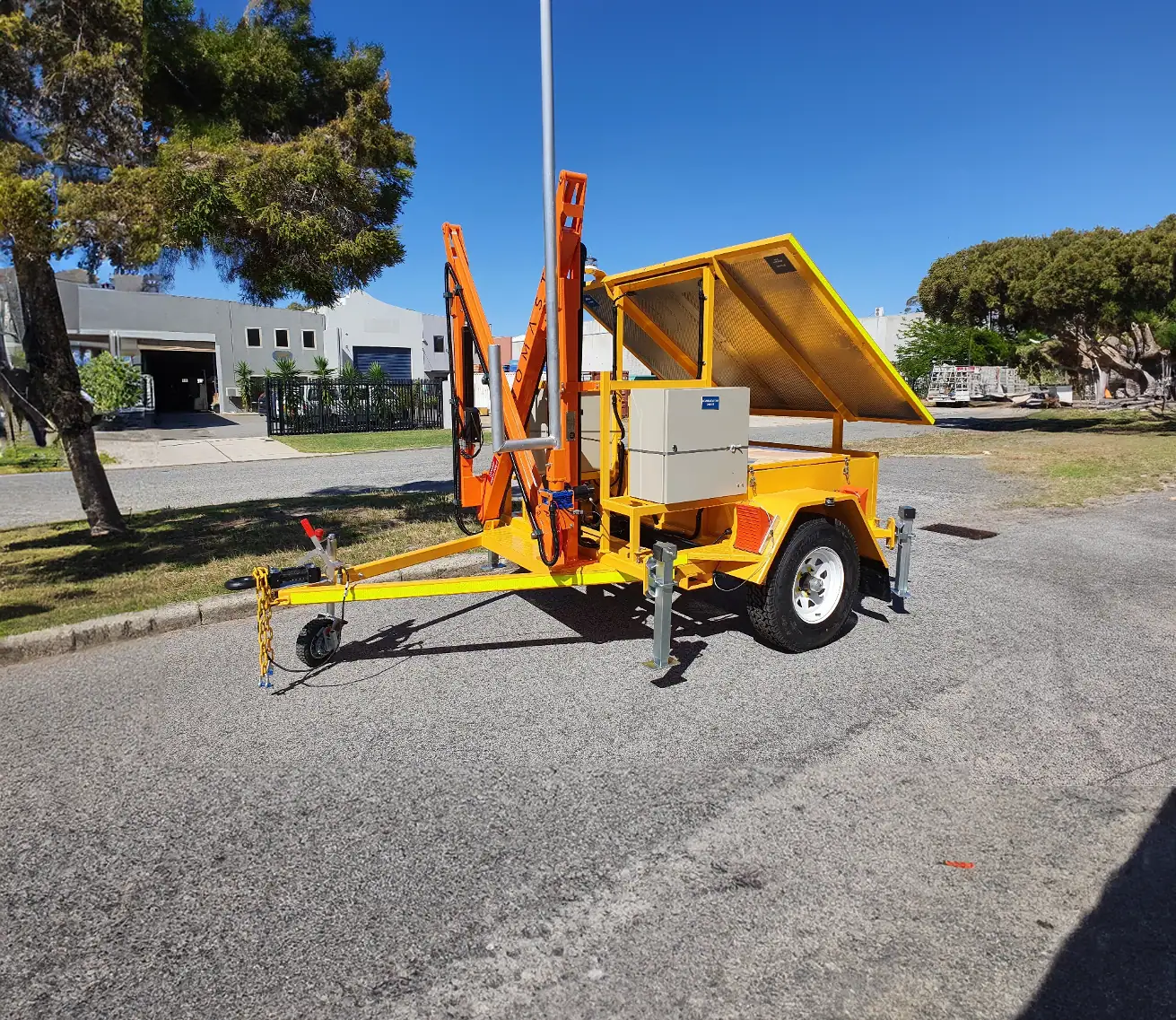

Trailer
Most customers go with the trailer. Hook it up to a light vehicle, tow it out and you're done. Multiple hitch options mean it works with whatever you've already got on site. It's ADR compliant and handles off-road conditions without issue.

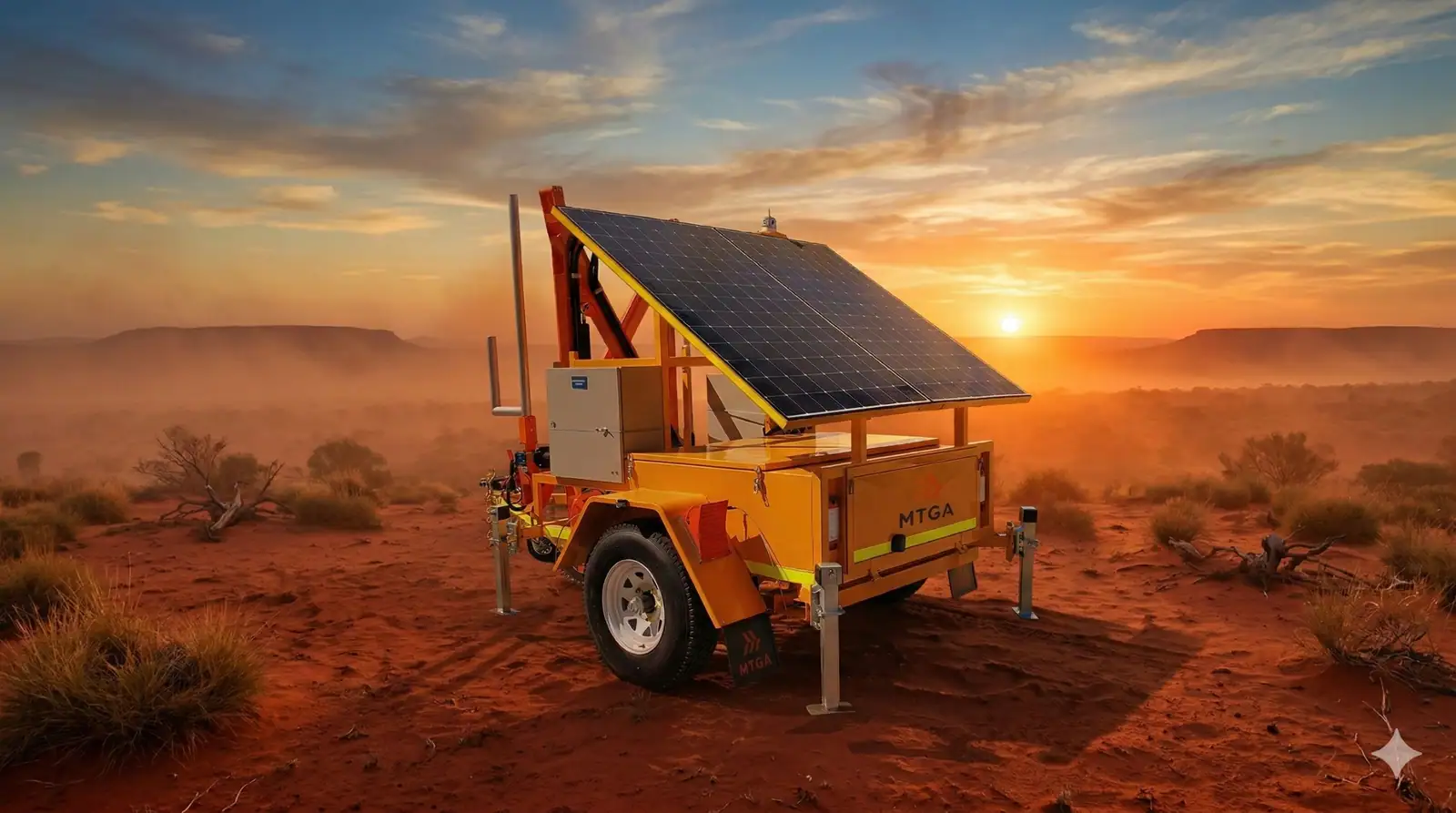

110 Series Trailers & Skids
MTGA’s Most Compact Communication Trailer, Engineered to Go Where Others Can’t
The 110 Series is MTGA’s most mobile communications unit, compact enough to follow your operation, tough enough to handle whatever it throws at it. Dust, heat, corrugated tracks, remote isolation - it’s been built for all of it, right here in Western Australia.
Tow it in, turn it on and you’re connected. With up to 120W continuous power output and five days of battery redundancy, it runs Wi-Fi mesh, LTE 4G, two-way radio, tetra/P25 and more without needing generator backup or complex setup. Available as a trailer or skid depending on how your operation works.
- SLIDING SOLAR PANEL ARRAY
- 8M INNOMAST LINEAR ARTICULATED MAST
- FULLY CUSTOM DESIGNED HEADSTOCK
- MULTIPLE HITCH OPTIONS
- UP TO 22.0 kWh BATTERY CAPACITY
- ENGINEERED RUGGEDISED FOR OFF-ROAD USE
- SEPARATE POWER AND COMMUNICATIONS CABINETS
- SUPPORTS 20-120W CONTINUOUS POWER DRAW
See It in Use
Specifications
- Mass
- Approx. 1,100-1,300 kg
- Type
- ADR Compliant trailer or skid
- Power Output
- 20 – 120W
- Mast Height
- 8m – 14m
- Mast Type
- 8m Innomast articulated electric mast (other as requested)
- Supported Headload
- 35 kg
- Supported Wind
- 85km/h if deployed, 120km/h stowed
- Battery Redundancy
- Up to 5 Days
- Solar Panels
- 2 x 415 or 500W
- Batteries
- Up to 22.0 kWh battery capacity – LiFePO4 or Lead Acid
- Battery Configuration
- 12V / 24V / 48V
- Enclosures
- 2 x Mild Steel Powder-Coated (600x600x300mm) or (800x600x300mm)
Why Choose This Product
Made in Australia for Australian Conditions
Not just a badge. Every 110 Series unit is fabricated at our Perth workshop, meaning faster lead times, easier access during the design phase, and a product built specifically to handle the heat, dust and corrugated tracks of Australian operations.
5 Days Independent Battery Life
Most sites can't afford communications downtime. With up to five days of battery redundancy, the 110 Series keeps your network running through overcast weather, extended shifts and unexpected delays without needing a generator backup.
60–120W Continuous Power Output
Enough to run the communications equipment your operation actually needs, from Wi-Fi mesh and LTE 4G to two-way, tetra and P25, without compromising performance or reliability.
Fully Customisable to Your Requirements
No two sites are the same. The 110 Series can be configured with your choice of batteries, mast type, communications devices and network setup. Tell us what outcome you need and we'll engineer it to deliver.
Built for Any Operation That Needs to Stay Connected
The 110 Series is designed for smaller sites and operations where reliable communications are critical but permanent infrastructure isn’t an option.
Mining
Remote camps, drill sites and autonomous haulage corridors where connectivity needs to move with the operation.Construction
Remote civil projects, road works and temporary site setups requiring fast, reliable network deployment.Agriculture
Large station properties and remote agricultural operations where coverage gaps affect security and yield.Defence & Government
Forward operating bases, emergency response deployments and temporary command posts requiring ruggedised, self-sufficient communications.Telecommunications
Network bridging and temporary coverage solutions during infrastructure rollouts or outages.
110 Series Trailers & Skids
For full specifications download the brochure
Trailer or Skid: Which is Right for Your Operation?
The 110 Series is available in two configurations to suit different operational requirements.

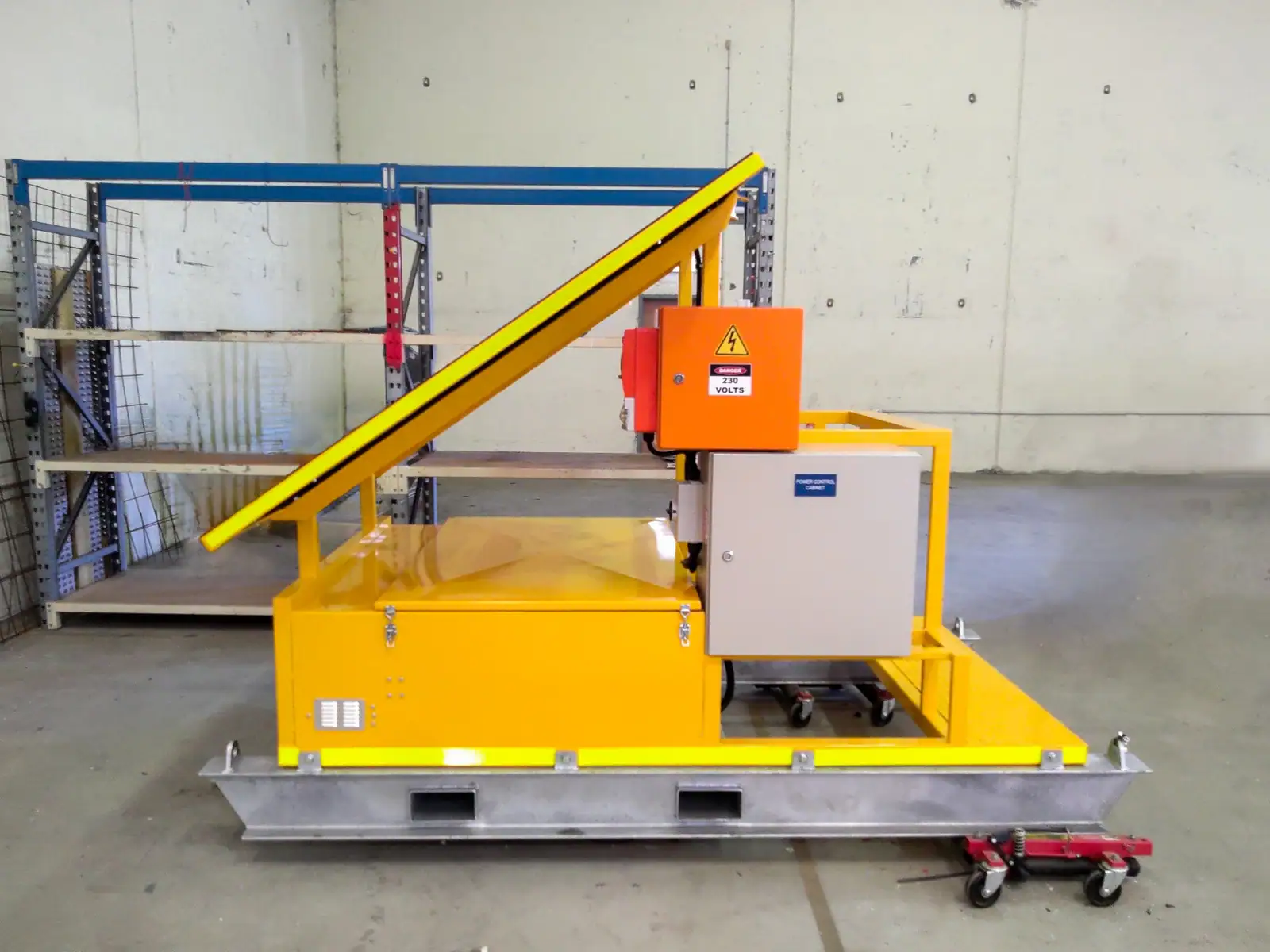

Skid
The skid suits situations where the unit is going to stay in one spot for a while but you still want the option to move it. Forklift-moveable and compact, it can be repositioned or lifted onto a truck when needed.

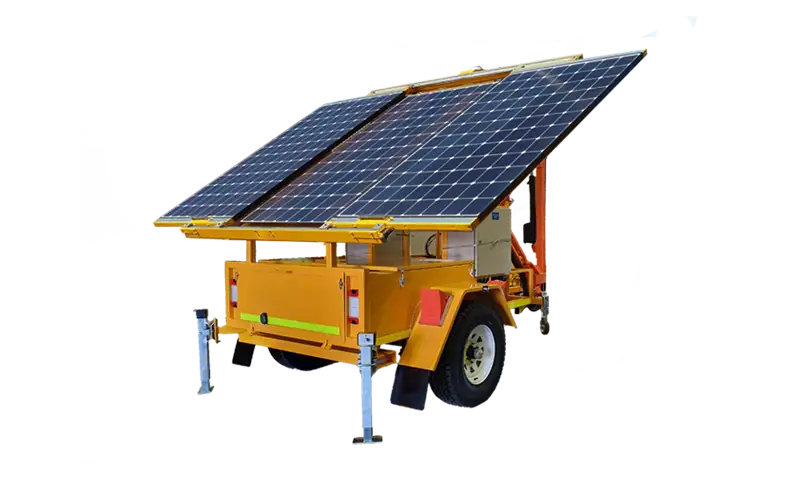

Need More Power or Device Support?
Perhaps your operation requires multiple devices or access points at once. In this case, the 200 Series may be an option worth considering. The same rugged design, but with more power and the ability to handle two devices.
Talk to The MTGA Team
Not sure what solution is right for you? Our team will go through the details with you and provide a quote tailored to your operation.
Frequently Asked Questions
What is the 110 Series Trailer & Skid?
The 110 Series is MTGA's most compact and mobile communications unit, available as either a trailer or a skid. It's a self-supported unit that runs Wi-Fi mesh, LTE 4G, two-way radio, tetra/P25 and more, without needing generator backup or complex setup.
What's the difference between the trailer and skid versions?
The trailer version is a fully mobile solution that can be towed by a light vehicle, with multiple hitch options to suit what's already on site. The skid version is a semi-portable solution where mobility is less critical but still required, and can be easily relocated using a forklift, flatbed ute or truck.
Where is the 110 Series manufactured?
All units are fabricated in MTGA's workshop in Western Australia, ensuring quality and durability in the field, as well as ease of access for customers during the design and construction phase.

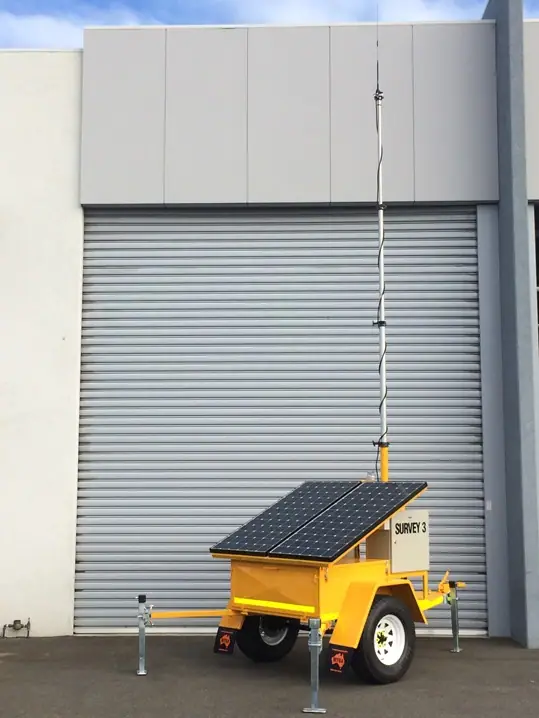

What mast does the 110 Series use?
The 110 Series features an 8m Innomast linear articulated mast, paired with a sliding solar panel array. Other mast types are available on request, with heights of up to 14m.
How much power can the 110 Series support?
The 110 Series delivers up to 120W of continuous power output, enough to run communications equipment such as Wi-Fi mesh, LTE 4G, two-way radio, tetra and P25 across smaller sites.
What is the battery capacity and battery life?
The 110 Series offers up to 22.0kWh of battery capacity and provides up to 5 days of independent battery life.
