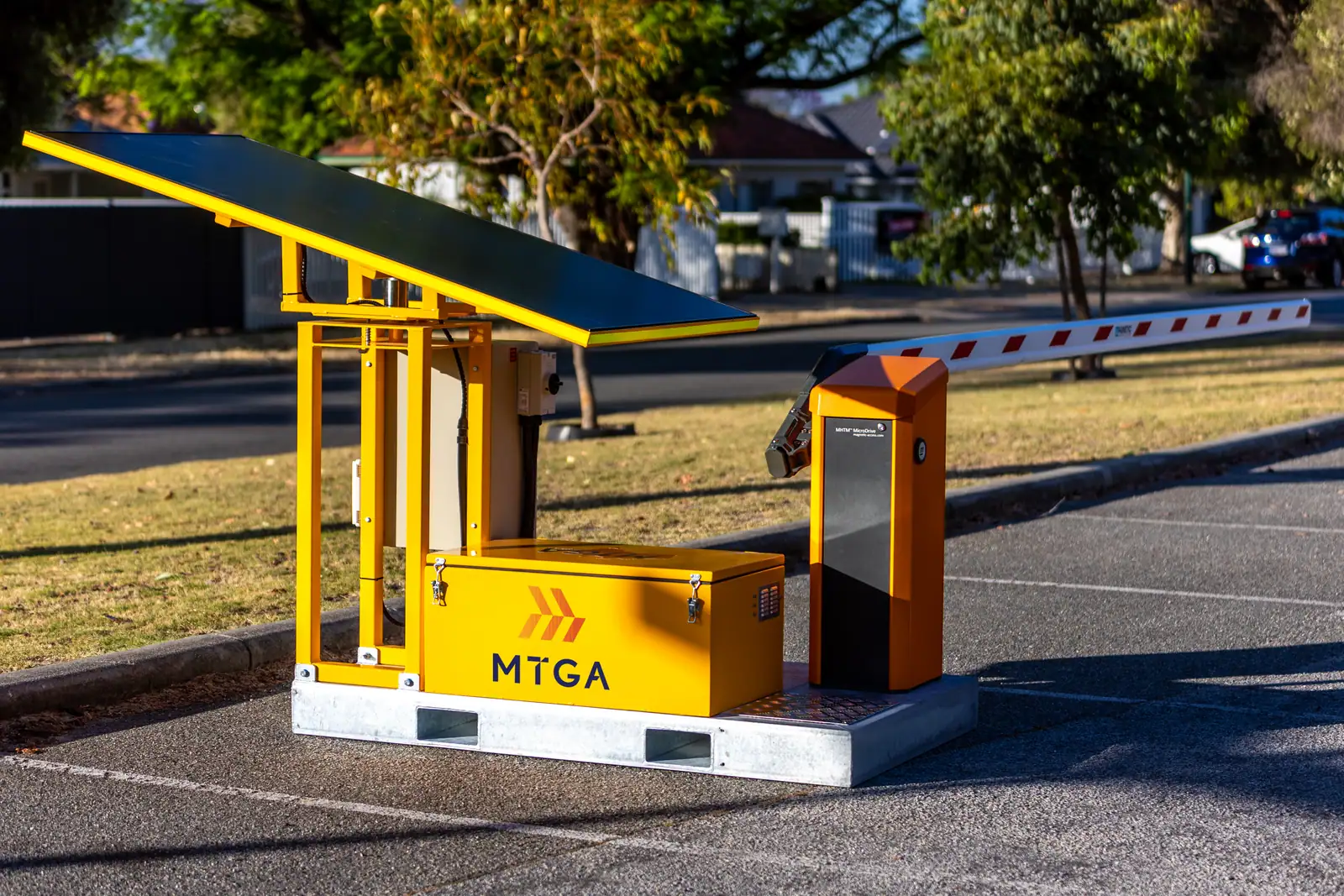

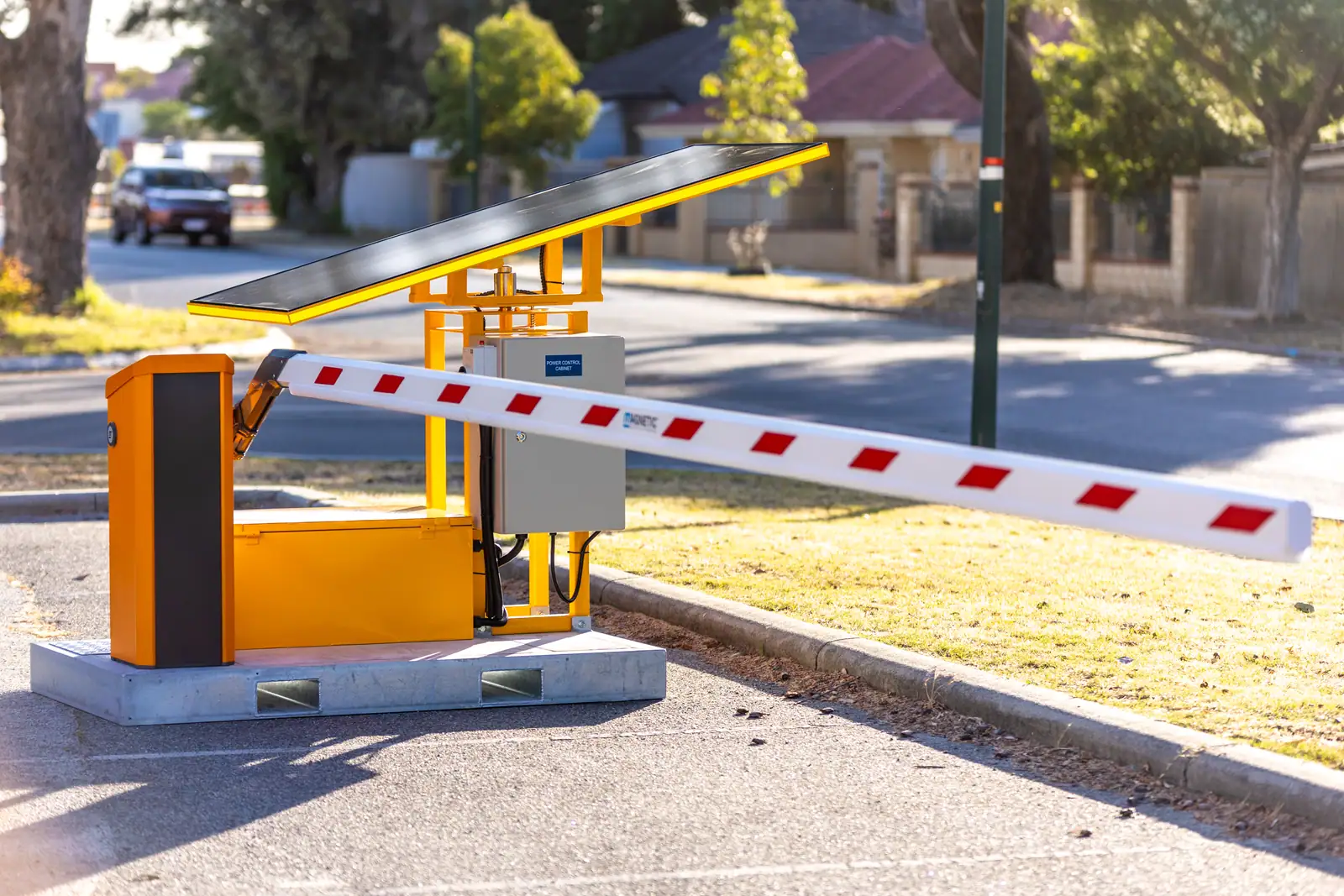

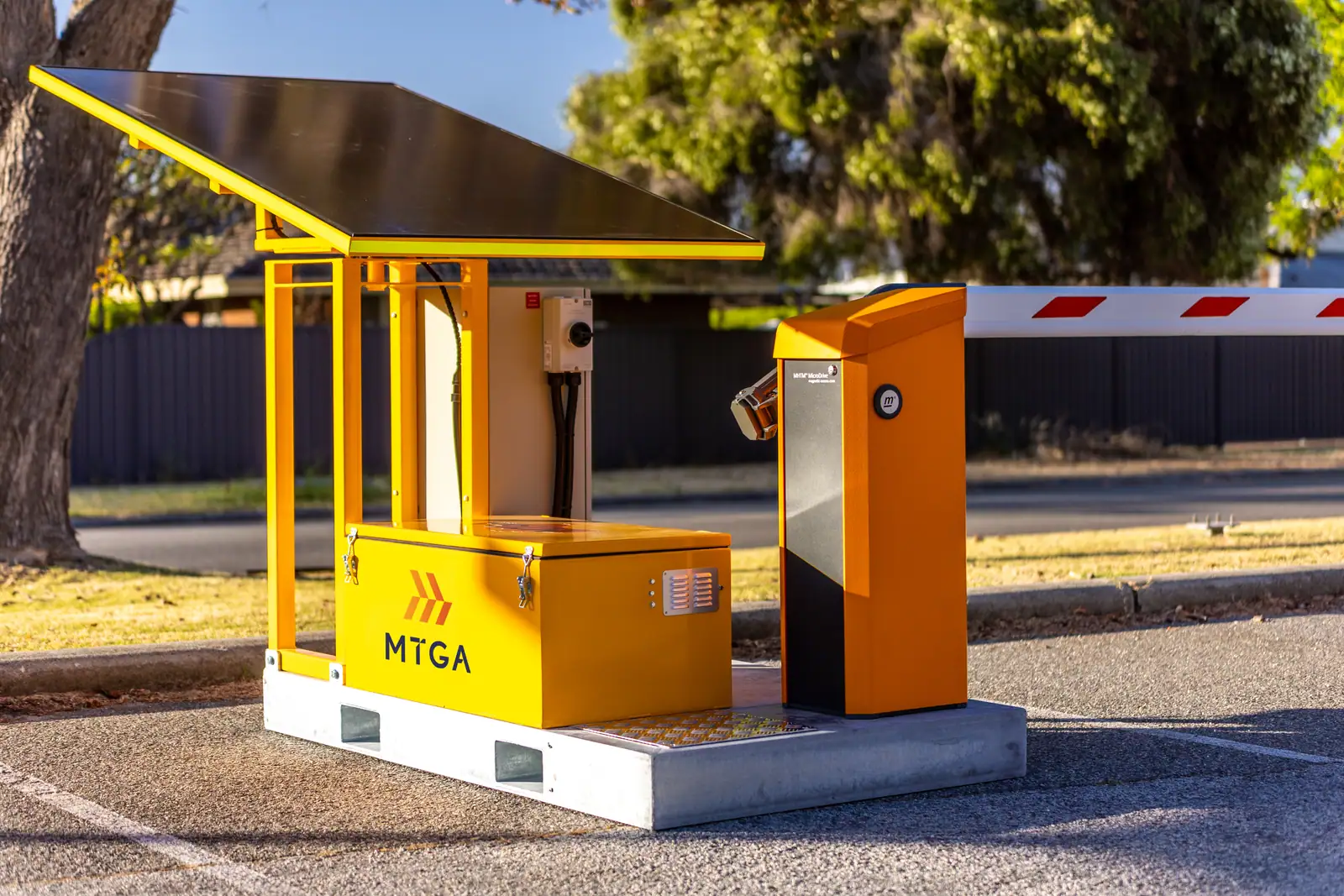

LV Solar Boom Gate Skid
Self-Contained Portable Access Control for Light Vehicles and Personnel
The MTGA LV Boom Gate Skid is a compact, solar-powered light vehicle boom gate built for sites that need portable access control without the cost and logistics of permanent infrastructure. At 900kg with a concrete-filled steel base, it’s stable enough to handle off-road conditions and light enough to reposition when the site layout changes.
Choose a 6m or 8m boom gate to suit your access point width, move it into position, and you’re controlling traffic. RFID triggers automated vehicle access, ultrasonic sensors handle vehicle detection, and the IP66-rated power cabinet and waterproof battery box keep everything running through dust and rain. One 415W solar panel and two 12V AGM batteries deliver four days of battery redundancy off grid.
Available to purchase or hire.
- PLUG-AND-PLAY DC POWER SYSTEM
- 4 DAYS BATTERY REDUNDANCY
- ENGINEERED RUGGEDISED FOR OFF-ROAD USE
- FULLY SELF-CONTAINED SET-UP
- ZERO TRENCHING OR CABLING REQUIRED
- CHOOSE 6M OR 8M BOOM GATE
- AUTOMATED VEHICLE ACCESS VIA RFID

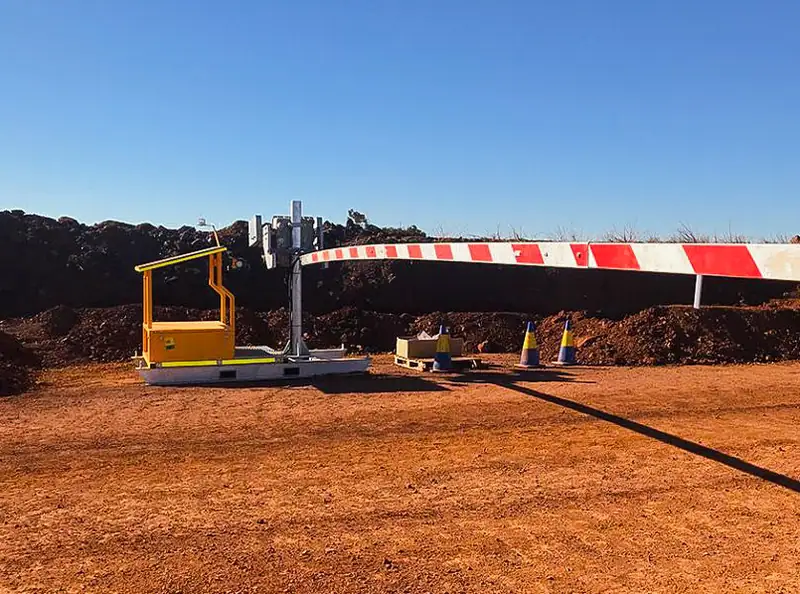

See It in Use
Specifications
- Mass
- Approx. 900 kg
- Boom Lengths
- 6m & 8m
- Compatible Models
- Magnetic Access Pro-L ‘or’ CAME GT6 B
- Power Output
- Up to 60W
- Batteries
- 2 x 12V 120Ah Century AGM
- Battery Bank Voltage
- 24V
- Battery Redundancy
- 4 days
- Wind Speed Limit
- 80km/h
- Solar Panels
- 1 x 415W
- Enclosures
- 1 x Mild Steel Powder Coated 600 x 400 x 300 mm
Why Choose This Product
No Trenching, No Cabling, No Civil Works
The LV Boom Gate Skid is entirely self-contained. Power comes from the onboard solar panel and batteries, there's no connection to mains power, no ground penetration and no civil works required. Move it into position and it's operational.
RFID, Ultrasonic Detection & In-Vehicle Control
Access is automated through RFID vehicle triggering and ultrasonic sensors for vehicle detection. The connected in-vehicle control system tracks per-vehicle entry and exit, giving you a log of exactly who came and went and when.
Remote Monitoring & GPS Tracking
Battery health and power status are monitored remotely. GPS tracking keeps the unit accountable, you know where it is and how it's performing without needing someone on site to check.
Available to Purchase or Hire
The LV Boom Gate Skid is available through the MTGA Hire. For short-term projects, temporary site setups or operations that need portable access control without a long-term capital commitment, hire gets you operational fast.
Built for Any Site That Needs to Control Access
Mining
Temporary and permanent access control at drill sites, mine entries and restricted zones where light vehicles and personnel need to be managed.Civil Construction
Site entries, laydown areas and restricted zones on civil projects where access needs to be controlled without permanent infrastructure.Agriculture
Station entries, storage facilities and sensitive areas on large properties requiring vehicle access management.Defence & Government
Forward operating locations, secure perimeters and temporary installations requiring portable, self-sufficient access control.
Light Vehicle Boom Gate Skid
For full specifications download the brochure
6m or 8m, Which Boom Length Do You Need?
Most customers go with the 6m boom, which suits the majority of standard site access points and personnel entry points. The 8m suits wider access roads where vehicles need more clearance, haul roads, dual-lane entry points or sites running larger light vehicle combinations. If you're unsure which suits your setup, our team can advise.
Need It Now? Ask About Hire
The LV Boom Gate Skid is available through the MTGA Hire. For short-term projects, temporary site setups or operations that need portable access control without a long-term capital commitment, hire gets you operational without the upfront cost. Units arrive ready to use, move it into position and start managing traffic the same day.
Need Access Control for Heavy Vehicles?
The HV Boom Gate Skid handles heavy vehicle traffic with a choice of 10m or 12m boom gate, six days of battery redundancy and the same self-contained, solar-powered setup. If your operation runs haul trucks or other heavy equipment through the same access points, it's the right call.
Talk to The MTGA Team
Not sure what solution is right for you? Our team will go through the details with you and provide a quote tailored to your operation.
