HV Boom Gate Skid
Self-Contained Heavy Vehicle Boom Gate Skid for Large-Scale Access Control
The MTGA HV Boom Gate Skid is a solar-powered, self-contained access control unit built to manage heavy vehicle traffic on mine sites and large commercial operations. Four 120Ah deep-cycle AGM batteries and a rotating 415W solar panel deliver six days of battery redundancy off-grid, enough to keep the gate operational for extended periods without attention. At approximately 1,000 kg with a ruggedised heavy-duty skid, it handles off-road conditions and repositions when site access requirements change.
Move it into position, turn it on, and you’re controlling traffic. Trigger it remotely by vehicle-mounted switch, key card or handheld fob. RFID automates access for registered vehicles, ultrasonic sensors handle detection, and the IP66-rated power cabinet and waterproof battery box keep the electronics protected from dust and moisture.
Available to purchase or hire.
- AUTOMATED VEHICLE ACCESS VIA RFID
- PLUG-AND-PLAY DC POWER SYSTEM
- 6 DAYS BATTERY REDUNDANCY
- ENGINEERED RUGGEDISED FOR OFF-ROAD USE
- FULLY SELF-CONTAINED SETUP
- ZERO TRENCHING OR CABLING REQUIRED
- CHOOSE 10M OR 12M BOOM GATE

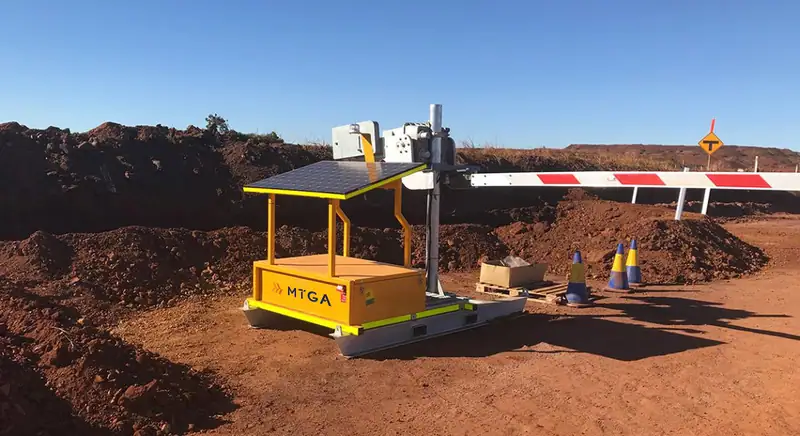

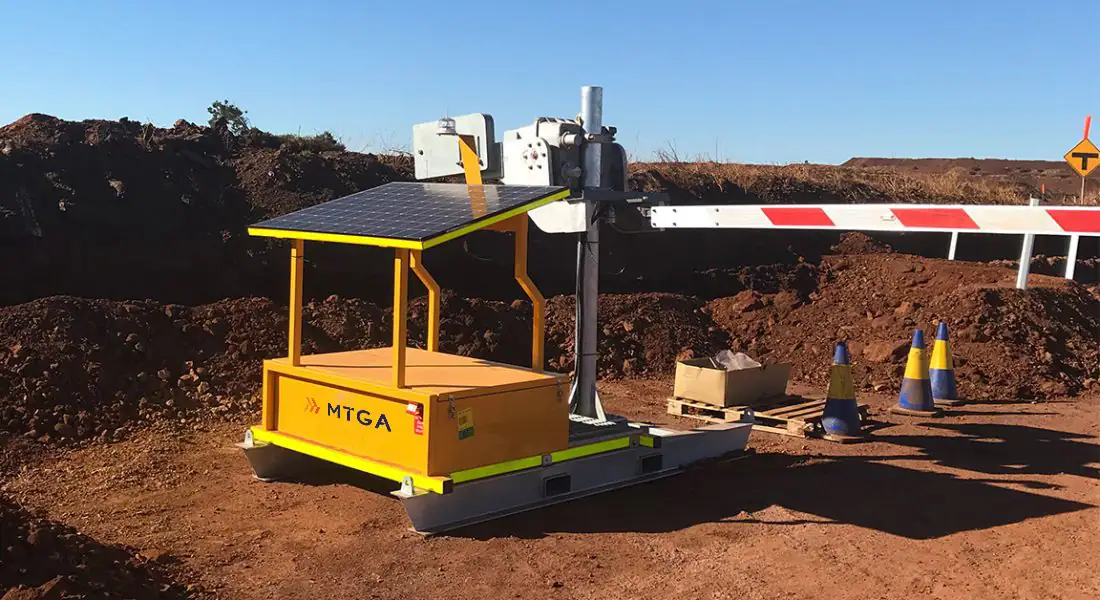

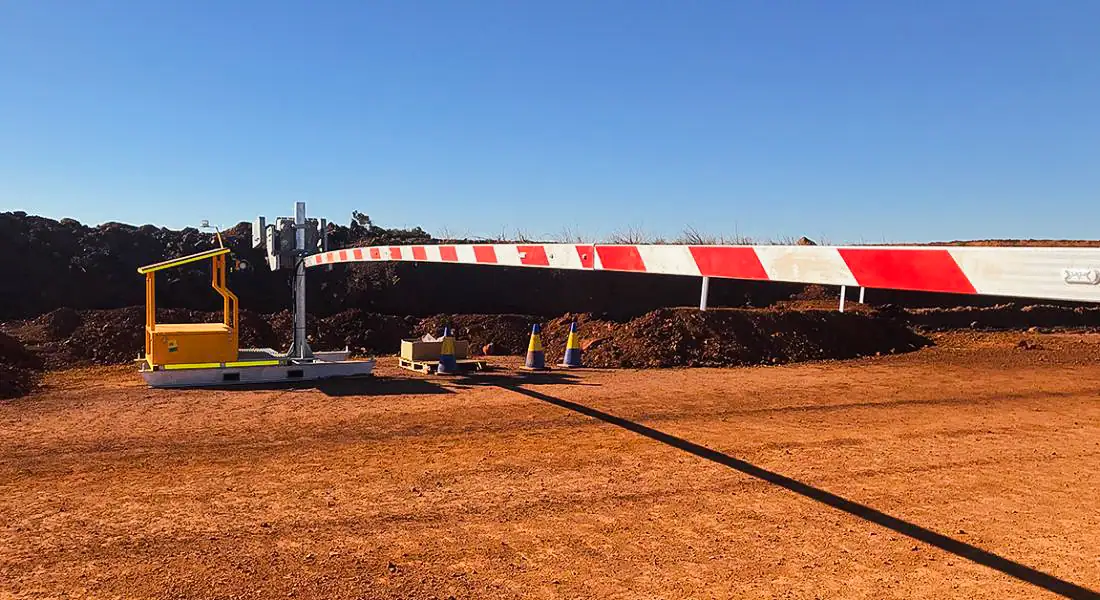

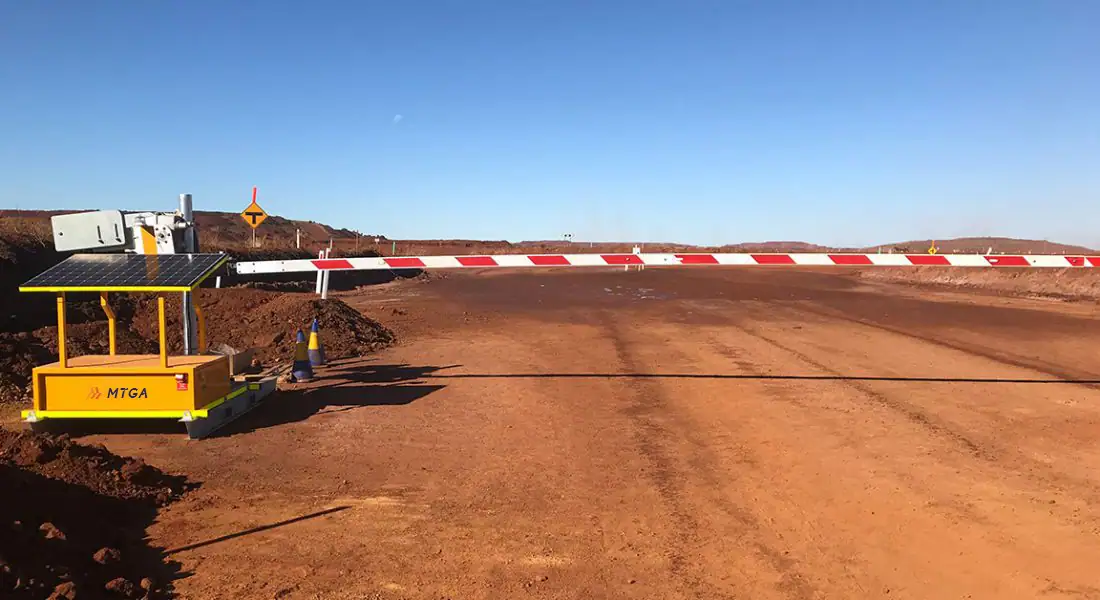

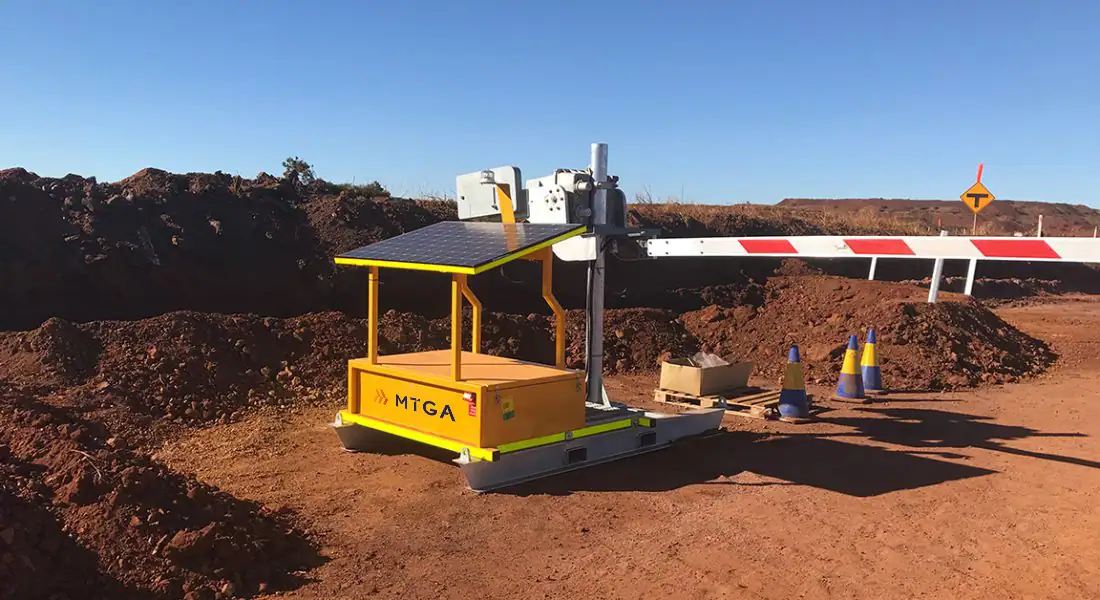

See It in Use
Specifications
- Mass
- Approx. 1,000 kg
- Compatible Models
- Magnetic Access Pro-L 10m or Siemens HV Boom Gate
- Boom Lengths
- 10 & 12 meters
- Power Output
- 30-60W Continuous Power Draw
- Batteries
- 4 x 12V 120Ah Deep-Cycle AGM
- Battery Bank Voltage
- 24V
- Battery Redundancy
- 6 days
- Wind Speed Limit
- 80-115 km/h
- Solar Panels
- 1 x 415W rotating solar panel
- Enclosures
- 1 x Mild Steel Powder Coated 600 x 400 x 300 mm
Why Choose This Product
Six Days Battery Redundancy, Off Grid
Four 120Ah deep-cycle AGM batteries and a rotating 415W solar panel deliver six days of battery redundancy. On remote mine sites where someone isn't on hand to troubleshoot, that margin matters.
Three Trigger Options
Access can be triggered by vehicle-mounted switch, key card or handheld fob, whichever suits your site's workflow. RFID automates access for registered vehicles, and the connected in-vehicle control system logs per-vehicle entry and exit for a full access record.
Rotating Solar Panel
The 415W solar panel rotates to track available light, particularly useful on sites where the skid can't always be oriented optimally. More consistent power input means more consistent battery charge across longer deployments.
No Trenching, No Cabling, No Civil Works
Fully self-contained with onboard solar and battery power. No connection to mains, no ground penetration, no site disturbance. Position it, power it on and it's operational.
Built for Sites Running Heavy Traffic
Mining
Main site entries, haul road access points and restricted zones on large mine sites where heavy vehicles and light vehicles need to be managed through the same access point.Civil Construction
Major civil infrastructure projects requiring controlled access for heavy plant and personnel without permanent gate infrastructure.Defence & Government
Secure perimeters and controlled access points at remote installations requiring self-sufficient, portable access control for heavy vehicle traffic.
Heavy Vehicle Boom Gate Skid
For full specifications download the brochure
10m or 12m, Which Boom Length Do You Need?
The 10m boom suits most heavy vehicle access points and dual-lane site entries. The 12m is the right call for wider haul roads, multi-lane entries or access points where extra clearance is needed for wide loads. If you’re not sure which suits your setup, our team can advise based on your site layout.

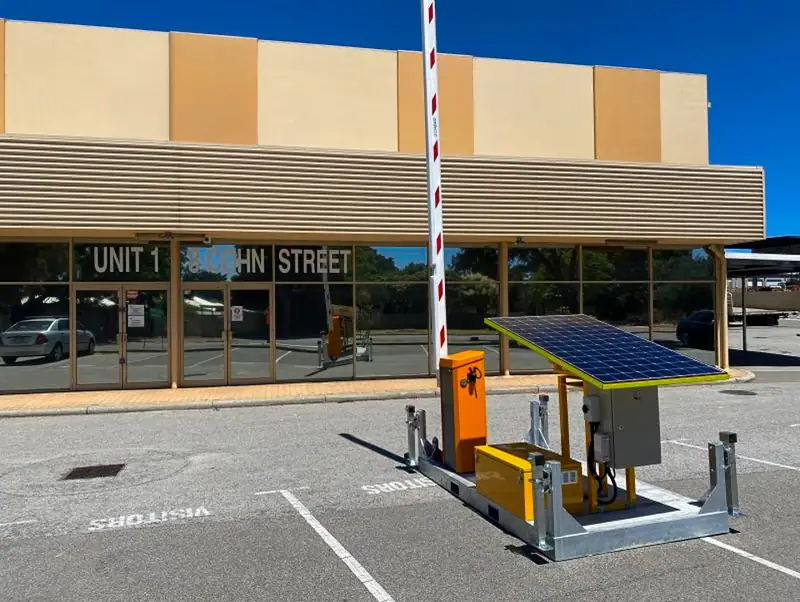

Only Need Access Control for Light Vehicles?
The LV Boom Gate Skid handles light vehicle and personnel access with a 6m or 8m boom, four days of battery redundancy and the same self-contained solar-powered setup, in a more compact 900kg footprint suited to tighter access points and smaller sites.
Talk to The MTGA Team
Not sure what solution is right for you? Our team will go through the details with you and provide a quote tailored to your operation.
