Omni CCTV Trailers
Solar-Powered Mobile CCTV Trailer for Immediate Around-the-Clock Site Surveillance

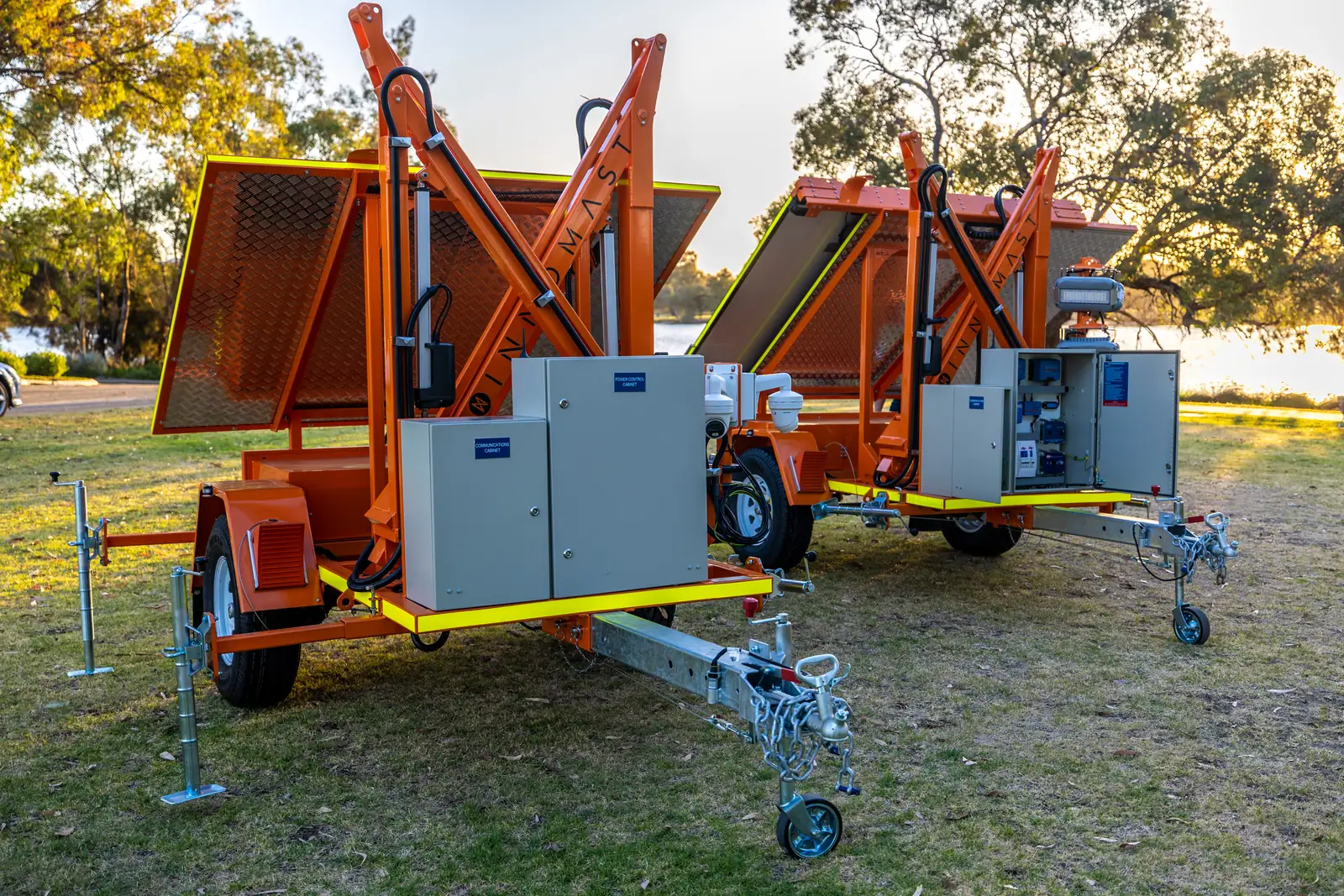

The Omni CCTV range is MTGA’s off-the-shelf solar surveillance trailer - pre-configured, ruggedised and ready to deploy the moment it arrives on site. No setup complexity, no lead time for configuration. Tow it into position and you have live surveillance running on battery and solar power within minutes.

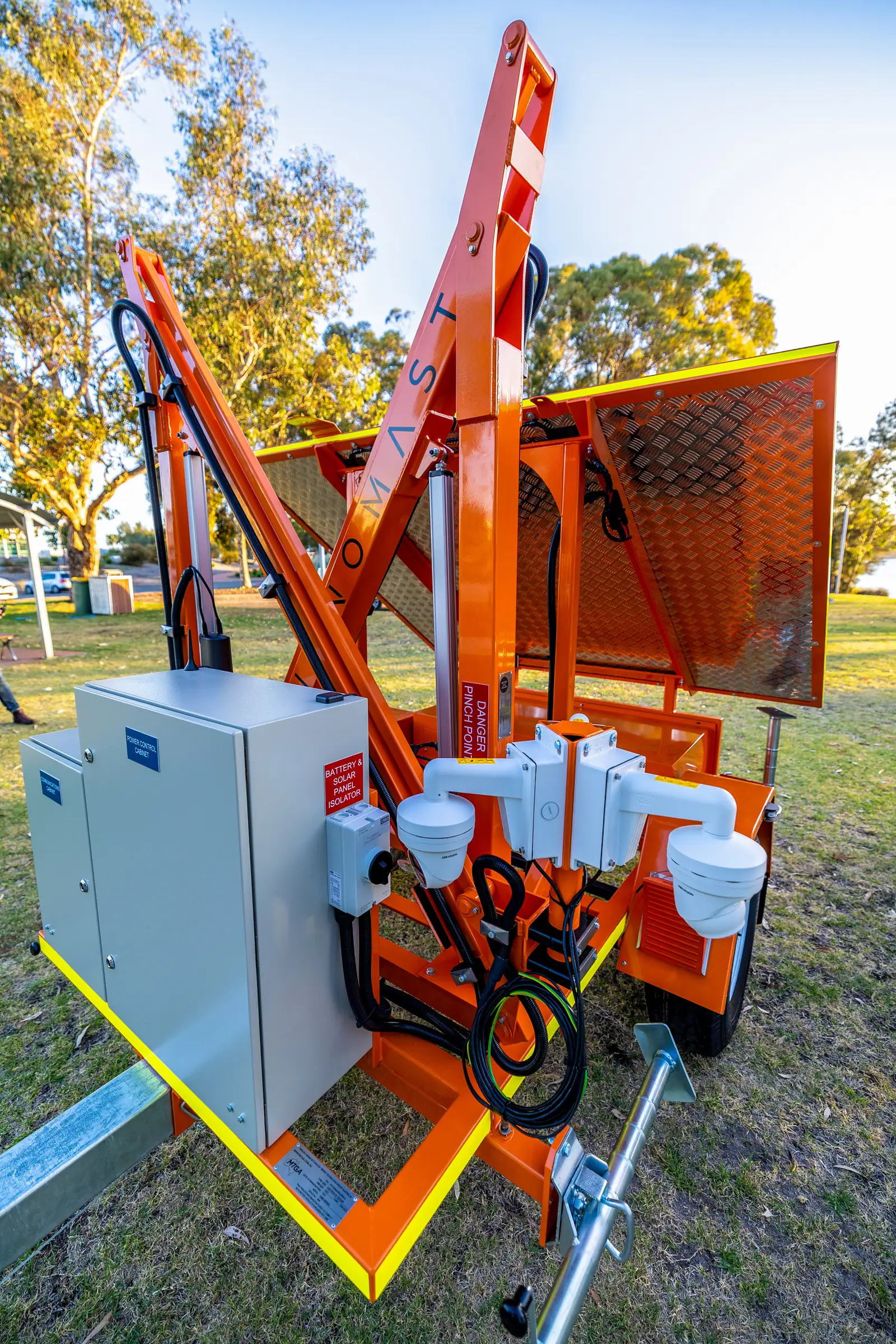

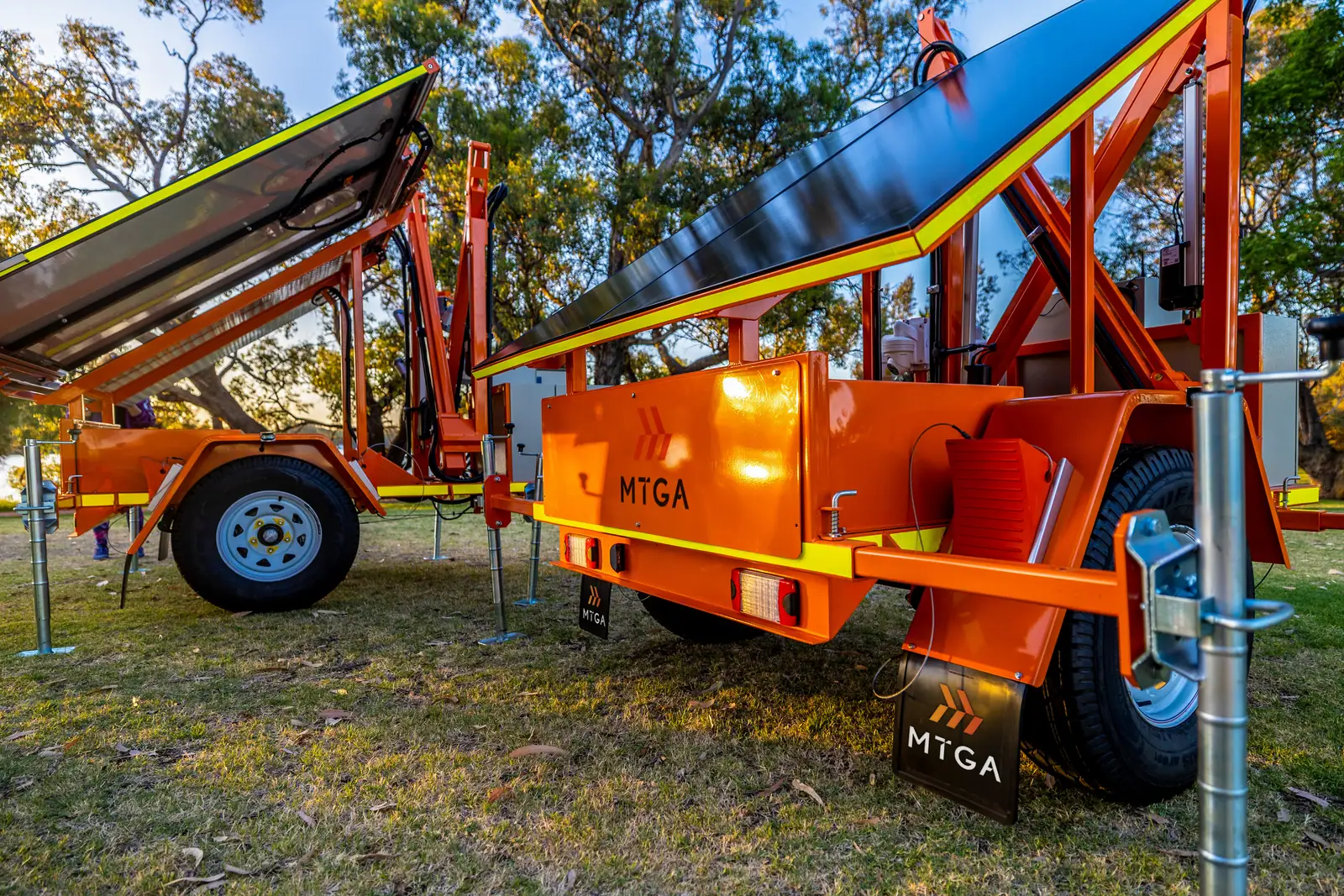

Each Omni CCTV trailer runs on 415W solar panels and 48V LiFePO4 lithium batteries, with five days of battery redundancy if the sun drops out. The 8m electric articulated mast deploys and stows quickly, cameras are accessible remotely via LTE or Wi-Fi for real-time or timelapse footage, and all footage uploads automatically to an FTP server for easy remote viewing. Dual IP66-rated equipment cabinets keep the batteries and controller protected from dust and moisture. ADR compliant and engineered for off-road conditions.
Available to purchase or hire.
- 8M ELECTRIC ARTICULATED MAST
- SLIDING SOLAR PANEL ARRAY
- UP TO 4 HIGHLY DURABLE CAMERAS
- IP66-RATED BATTERY HOUSING
- ENGINEERED RUGGEDISED FOR OFF-ROAD USE
See It in Use
Specifications
| Omni CCTV 2 | Omni CCTV 3 | Omni Lighting CCTV 4 | |
|---|---|---|---|
| Cameras Supported | 2 x Turret/Dome Cameras | 3 x Turret/Dome Cameras | 4 x Turret/Dome Cameras |
| Mass | 1,000 kg | 1,130 kg | 1,275 kg |
| Lights | N/A | N/A | 2 Lights equaling 25,000 lumens |
| Solar Panels | 2 x 415W | 3 x 415W | 4 x 415W |
| Batteries | 7.2 kWh Battery Capacity, 1 x 48V 150Ah LiFePO4 | 14.4 kWh Battery Capacity, 2 x 48V 150Ah LiFePO4 | 21.6 kWh Battery Capacity, 3 x 48V 150Ah LiFePO4 |
| Type | ADR Compliant Trailer | ||
| Mast Type | Innomast 5m to 8m | ||
| Supported Headload | Up to 35 kg | ||
| Supported Wind | 85km/h if deployed, 120km/h stowed | ||
| Battery Redundancy | Up to 5 Days | ||
| Enclosures | 2 x Mild Steel Powder- Coated (600x600x300mm) | ||
Why Choose This Product
Made in Australia for Australian Conditions
Built and tested for the harsh end of the Australian environment, heat, dust, rough terrain and remote access. The same ruggedised construction across the full Omni range.
5 Days Battery Redundancy
All Omni CCTV models run on battery alone for up to five days. Continuous around-the-clock surveillance without generator dependency or mains connection.
Remote Viewing via LTE, Wi-Fi or FTP
Access live or timelapse footage remotely from any Omni camera on site via LTE or Wi-Fi. Footage also uploads automatically to an FTP server, no need for someone on site to retrieve recordings.
Available to Purchase or Hire
The Omni CCTV range is available through MTGA Hire. For project-based surveillance, short-term shutdowns or seasonal security requirements, hire gets cameras on site fast without a capital commitment.
Built for Sites That Can't Afford Blind Spots
Mining
Temporary and permanent surveillance at drill sites, mine entries, restricted zones and laydown areas where around-the-clock monitoring is required in remote locations.Civil Construction
Access point monitoring, equipment security and perimeter surveillance on civil projects where a permanent CCTV infrastructure isn't practical.Agriculture
Remote property monitoring, storage facility security and access surveillance across large stations where running cable isn't feasible.Defence & Government
Forward deployment surveillance and perimeter security at remote installations requiring self-sufficient, mobile camera systems.
Omni CCTV Trailers
For full specifications download the brochure
CCTV 2, CCTV 3 or Lighting CCTV 4, Pick Your Coverage
All three Omni CCTV models share the same solar-powered platform, ruggedised construction and five-day battery redundancy. The difference is how much coverage you need.
| Omni CCTV 2 | Omni CCTV 3 | Omni Lighting CCTV 4 | |
| Cameras | 2 x Turret/Dome | 3 x Turret/Dome | 4 x Turret/Dome |
| Lighting | - | - | 2 x lights, 25,000 lumens |
| Solar Panels | 2 x 415W | 3 x 415W | 4 x 415W |
| Battery Capacity | 7.2 kWh | 14.4 kWh | 14.4 kWh |
| Battery Redundancy | 5 days | 5 days | 5 days |
Talk to The MTGA Team
Not sure which Omni CCTV model suits your site? Our team will work through the coverage requirements with you and put together a quote.
