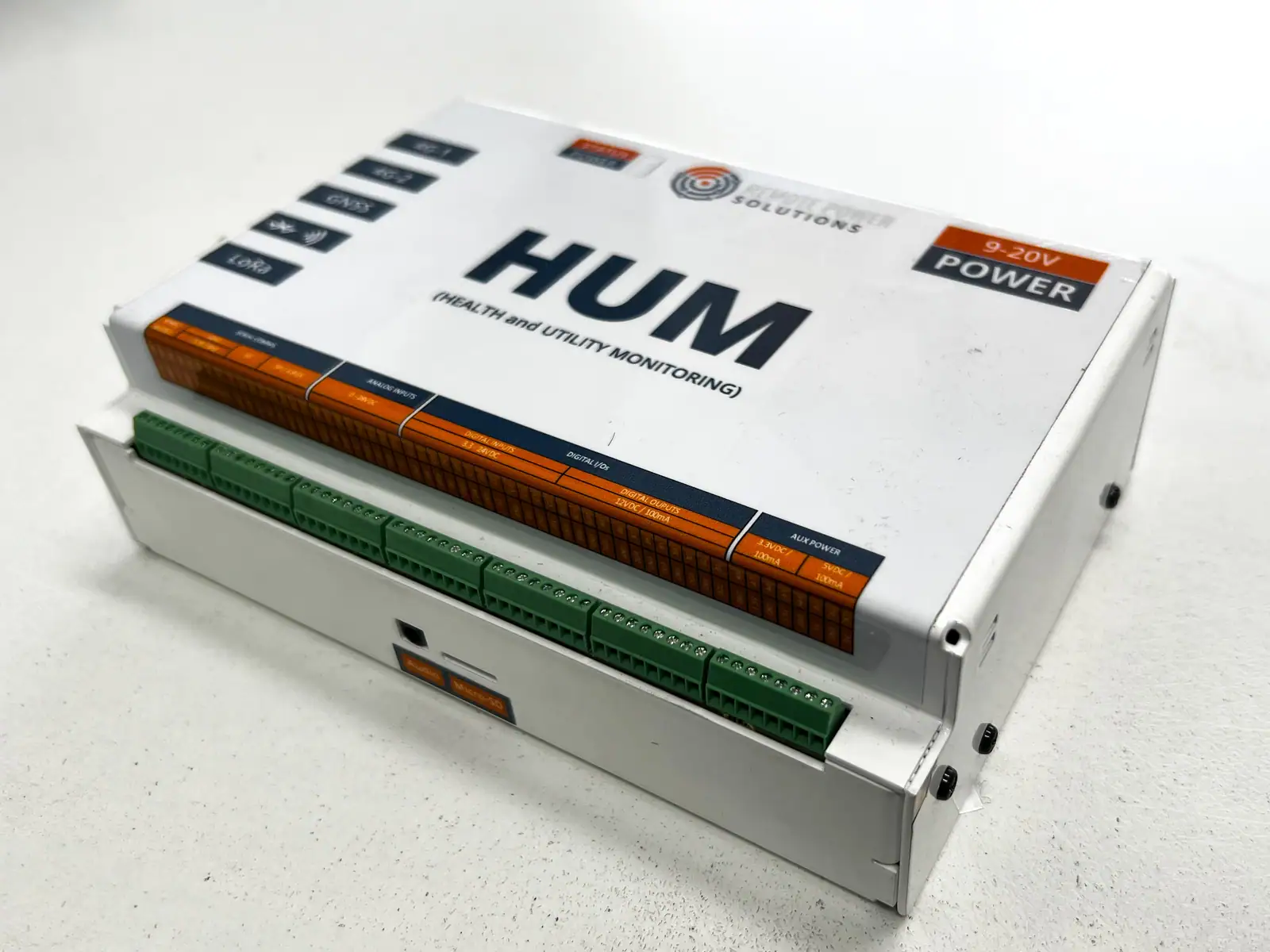

HUM - Health & Utilisation Monitor
Real-Time Remote Health Monitoring Across Your Entire Communications Fleet
Communications equipment runs in remote locations, often unattended for extended periods. Without visibility into battery health, solar output and GPS position, the first sign of a problem is usually a network outage and by then, the damage to operations is already done.
The HUM changes that. MTGA’s monitoring device fits directly onto any communications trailer and feeds real-time data back to a single web-based dashboard, battery state, solar performance, equipment location, orientation and more. It flags potential issues before they cause downtime, shows you where your equipment is, and keeps a log of performance data for ongoing optimisation. Compact enough to retrofit into existing systems without major modifications.

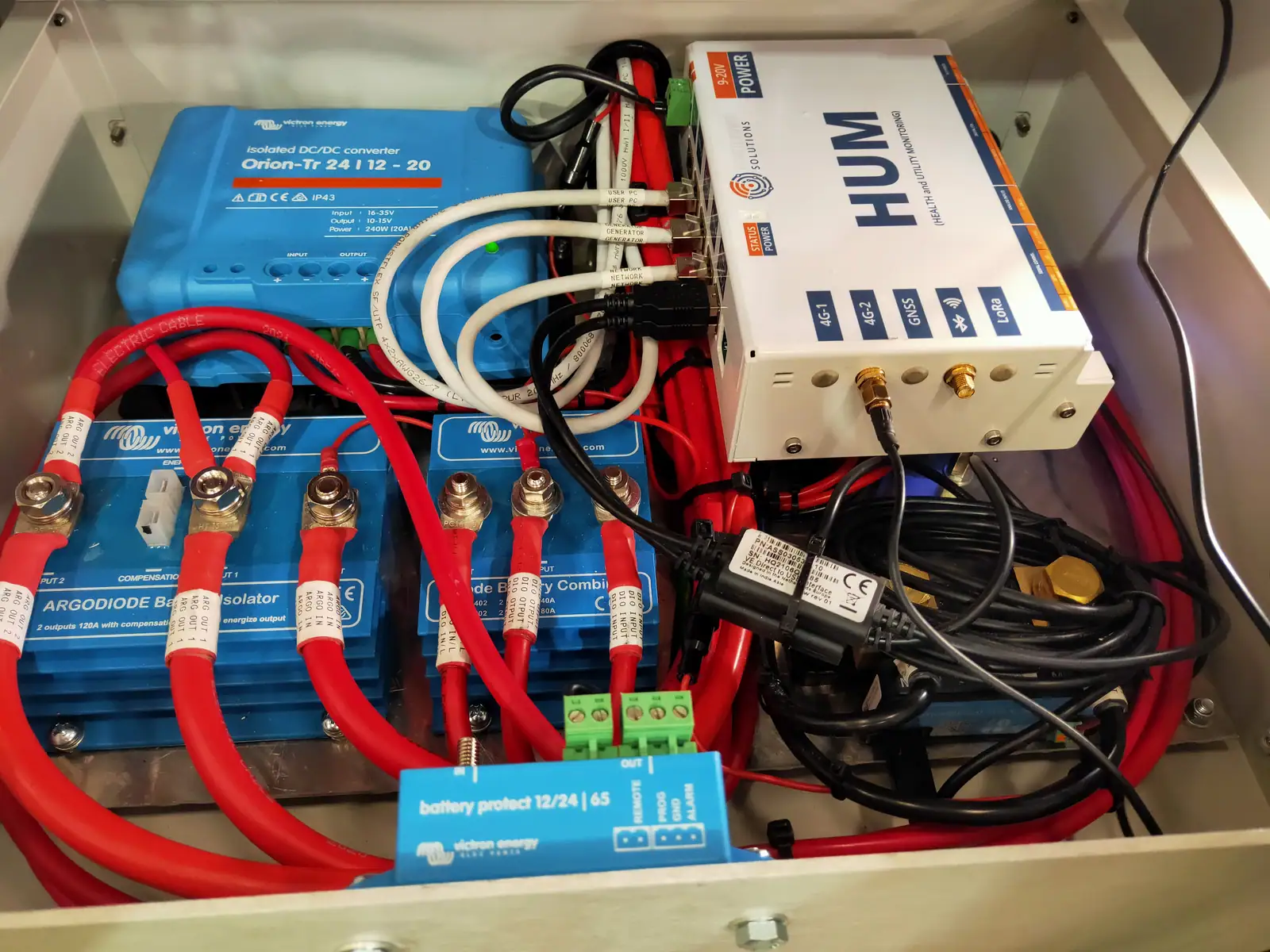

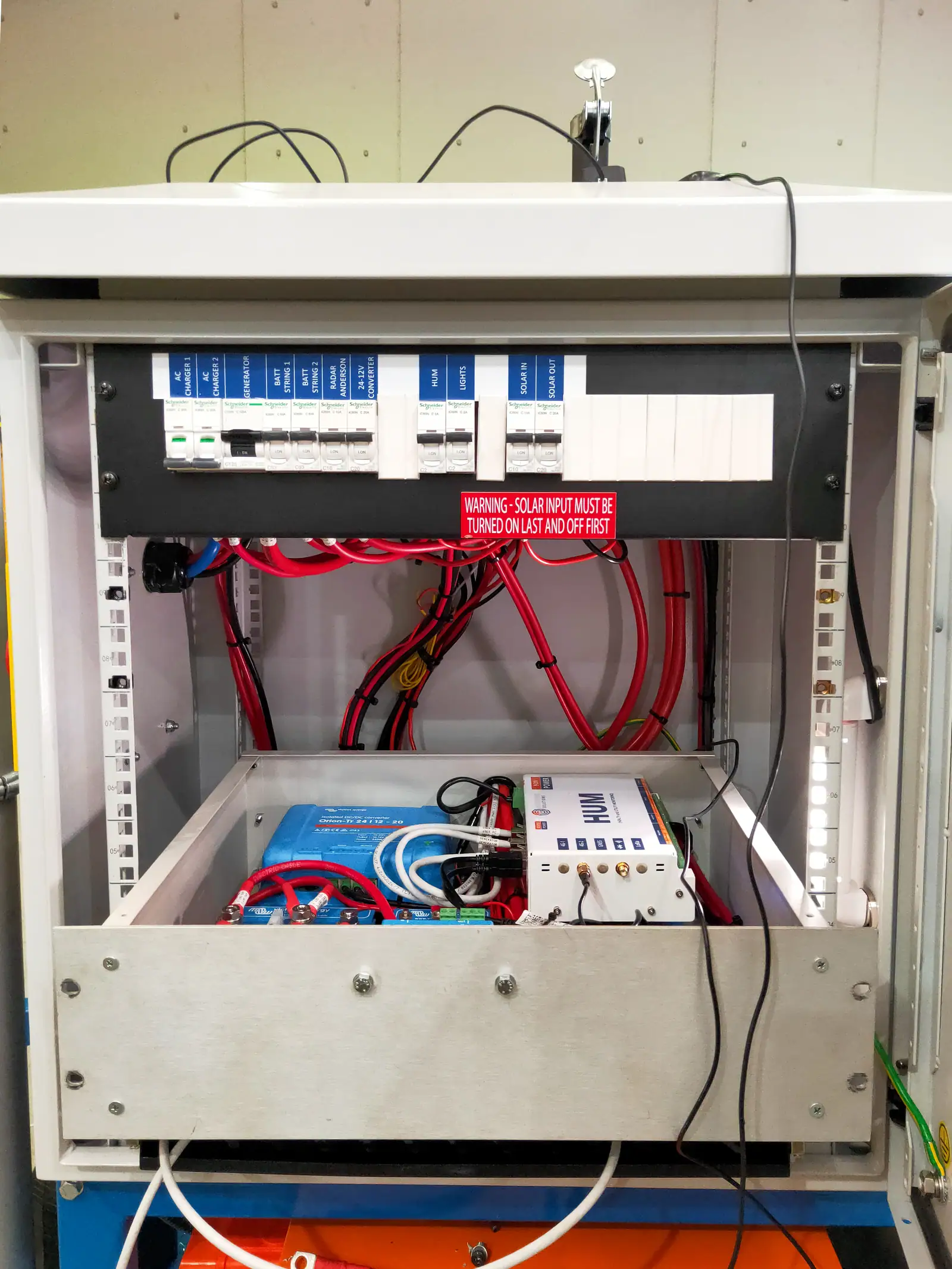

See It in Use
Specifications
- Type
- Communications/ Diesel Asset/ Lite (unpowered asset) / Custom
- Mass
- 200 g
- Power Input (Cont.)
- Up to 30V
- Dimensions
- 200 x 115 x 55 mm (LxWxH)
- Common Features
- Wi-Fi/4G/3G Enabled, SNMP Enabled, GPS Positioning, GPIO interface
- Communications
- Ethernet Interface, Internal Compass, Externally Mounted GPS Antenna, Monitors and Displays Solar & Battery
- Diesel Asset
- Fuel Level monitoring, Remote/Automated ON/OFF, Run time/Hour Monitoring
- Lite
- Integrated Micro Solar panel, Self-charging (no need to replace battery), Magnetic mounts for easy installation
- Inputs/Outputs
- 6 x 12V Digital Outputs, 6 x (3.3V – 12V) Digital Inputs, 3 x (0 – 28V) Analog Inputs, 1 x 0-20mA dedicated Analog Input
What the HUM Monitors
GPS Location & Overspeed Reporting
Equipment is tracked in real time on a map overlay using Google Maps or your site's own mine map. If equipment is moved above 40km/h or any threshold you set, it logs and reports the event, even if offline at the time.
Battery & Solar Health
The HUM interfaces directly with the solar charge regulator to monitor battery health and solar output. It tracks the relationship between solar panel orientation and power output, helping optimise trailer positioning and flag declining performance before it causes an outage.
Trailer Orientation
An internal magnetometer and compass track which direction the trailer is facing. Combined with solar output data, this tells you whether panels are positioned optimally for the conditions and where adjustments would improve performance.
Network Dead Spot Mapping
With equipment position logged, the HUM helps identify gaps in your network coverage. Equipment can be positioned at the right distance relative to one another on setup, reducing the probability of wireless dead spots and simplifying troubleshooting when issues arise.
HUM
For full specifications download the brochure
| Communications | Diesel Asset | Lite | |
| GPS Tracking | ✓ | ✓ | ✓ |
| Wi-Fi / 4G/LTE | ✓ | ✓ | ✓ |
| Solar & Battery Monitoring | ✓ | - | - |
| Fuel Level Monitoring | - | ✓ | - |
| Remote On/Off Control | - | ✓ | - |
| Run Time / Hour Monitoring | - | ✓ | - |
| Self-Charging Micro Solar | - | - | ✓ |
| Magnetic Mount | - | - | ✓ |
The Lite version is designed for unpowered assets, self-charging via integrated micro solar panel and installs with magnetic mounts, no wiring required.
One Dashboard, Every Asset
All data from every HUM-equipped asset feeds into a single web-based interface, accessible on your site’s intranet. Markers on the map represent each asset type and display a visual snapshot of its health. One login, complete fleet visibility, from anywhere on site.
Fits Your Existing Fleet
The HUM is designed to integrate seamlessly into current MTGA asset systems and can be retrofitted without major modifications. It works across the full communications trailer range, from the 110 Series through to the base station units.
Talk to The MTGA Team
Want to know more about adding HUM monitoring to your equipment?
Get in touch and we’ll walk you through the options.
