A-Stop Charging Solutions
Purpose-Built Charging For Caterpillar A-Stop Units In Autonomous Haulage Environments
The MTGA A-Stop Charging Solutions are purpose-built for Caterpillar A-Stop units used in autonomous haulage systems, one for the workshop, one for the cab. Both are built for mining environments, powder-coated for durability and ready for the demands of high-volume AHS operations.
See It in Use
Specifications
| A-Stop In-Vehicle | A-Stop In-Vehicle | |
|---|---|---|
| Material | Mild steel | Aluminium |
| Dimensions | 150mm x 220mm x 600mm (height x depth x width) | 100mm x 35mm x 129mm (height x depth x width) |
| Weight | 13kg | 0.4kg |
| Charging Slots | 10 | 1 |
| Colour | Grey (Other colours are available on request) | |
| AC Input | 100-240V 1.3A 50/60Hz (Per unit) Class I | - |
| AC Input MAX | 100-240V 3.9A 50/60Hz (3 Units stacked) Class I | - |
| Output (per Port) | DC 5V 1A | - |
| Product Plug | 2.5mm DC metal line plug | - |
| Input Plug Type | IEC C13 power cable | - |
| Linking Cable | IEC C14 to C13 cable | - |
| Stackable To | Up to 3 units (30 charge slots) | - |
| DC Input | - | 12/24V |
| DC Output | - | 5V 3A |
| Input Connector | - | Piggyback spade connector (retrofit to cigarette lighter socket) |
| Output Connector | - | 2.5mm DC plug |
| Stackable | - | No |
| Charges | Caterpillar A-stops for AHS | |
Workshop or Vehicle, There's a Solution for Both

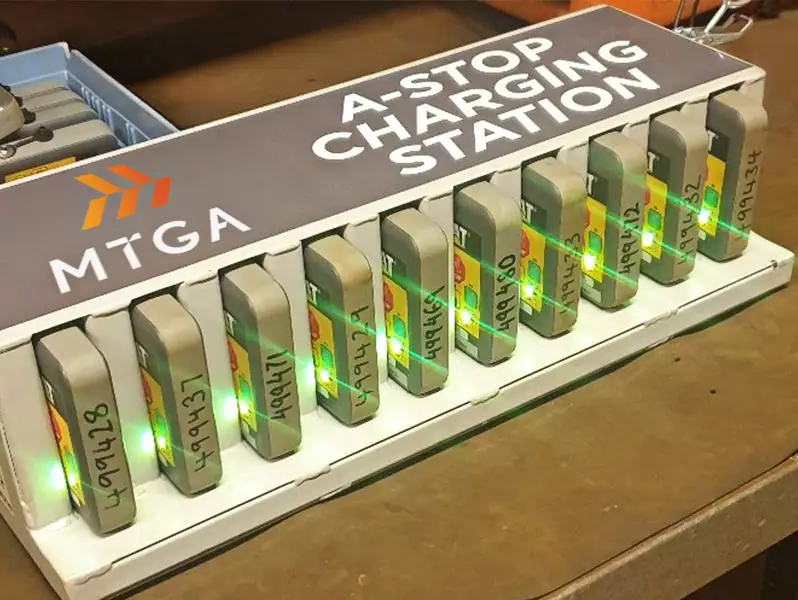

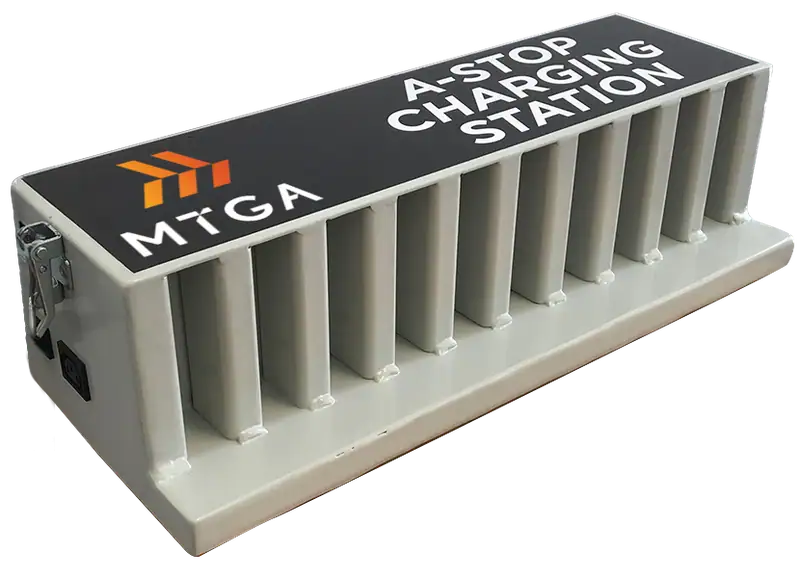

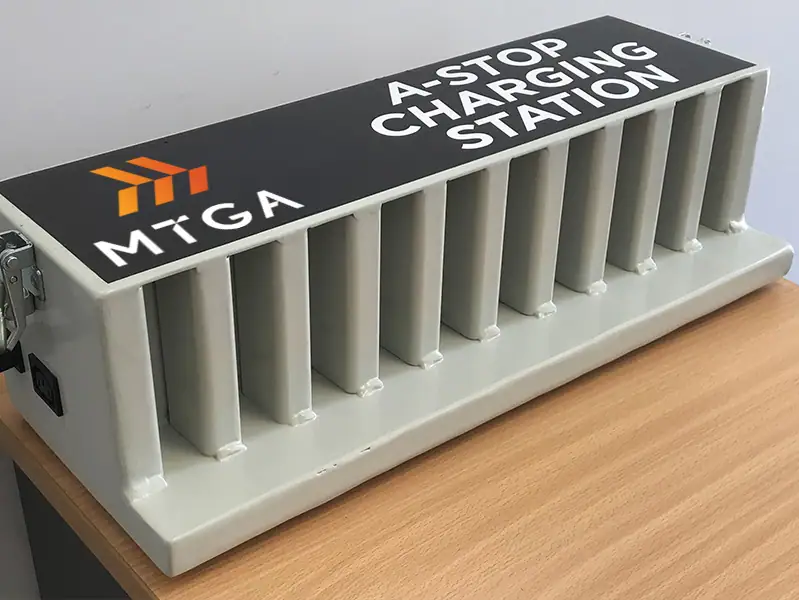

A-Stop Rack Workshop Charging Station
The A-Stop Rack charges up to 10 Caterpillar A-Stop units simultaneously from a single outlet. Stackable to three units for up to 30 charge slots, it suits high-volume workshop and field-based environments where fleet readiness is a daily operational requirement. Mild steel construction, powder-coated and built to last in harsh conditions.A-Stop In-Vehicle Charger

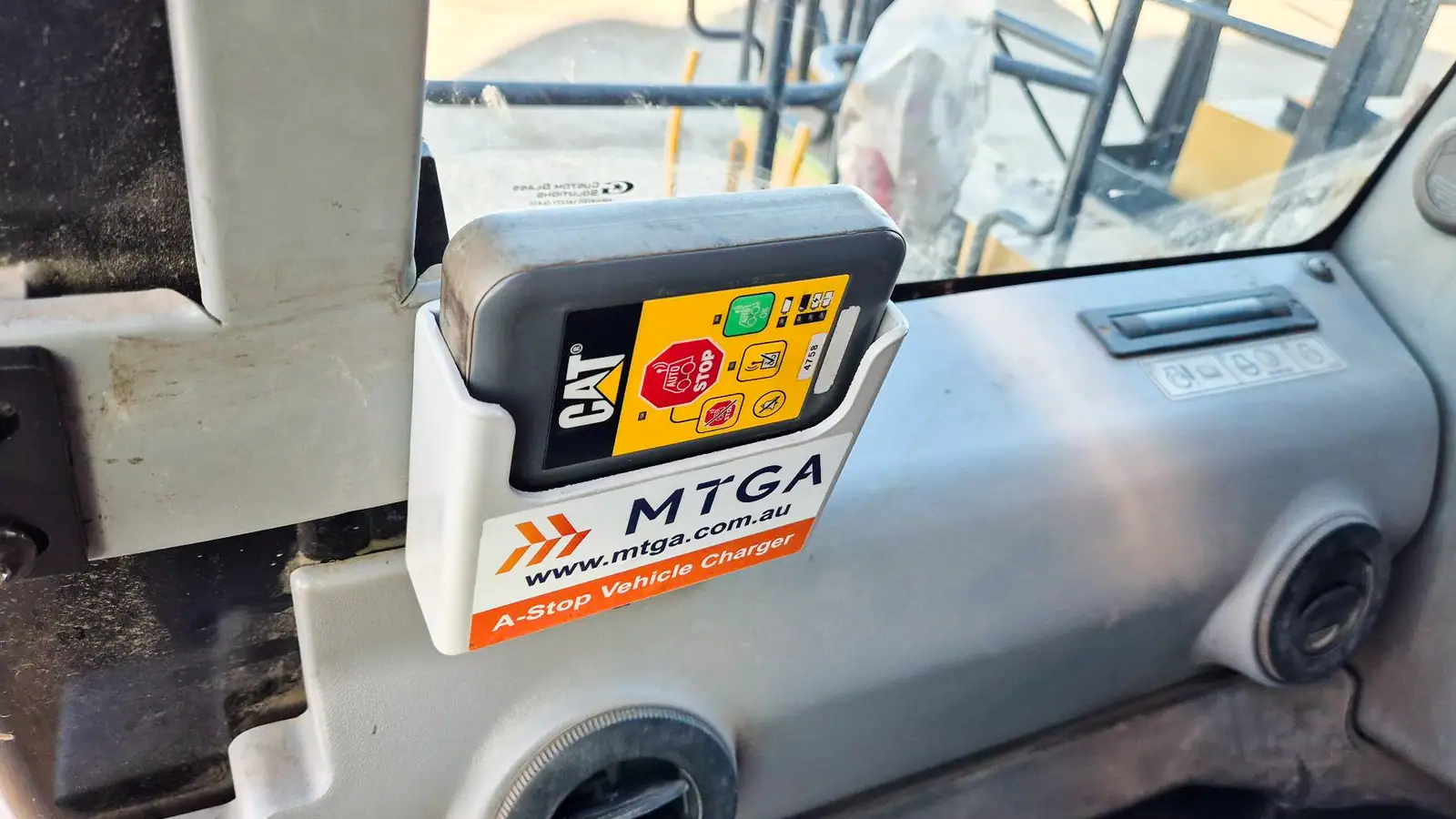

The In-Vehicle Charger keeps a single A-Stop charging while the vehicle is in operation. Compact aluminium construction, retrofits to a standard cigarette lighter socket via piggyback spade connector, and delivers 5V 3A output to keep the A-Stop ready between or during shifts. Suits mobile operations where the unit needs to charge on the go rather than in a workshop.
A-Stop Charging Solutions
For full specifications download the brochure
Part of the MTGA Autonomous Vehicle Technology Range
The A-Stop Charging Solutions work alongside MTGA's broader autonomous vehicle technology offering. If your operation is also deploying site awareness systems, the SAB Rapid Deployment Kit provides purpose-built housing and installation for OEM site awareness hardware across your fleet.
Talk to The MTGA Team
Running an AHS operation and need to keep your A-Stop fleet charged? Get in touch and we’ll work through your requirements.
